3-917657-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

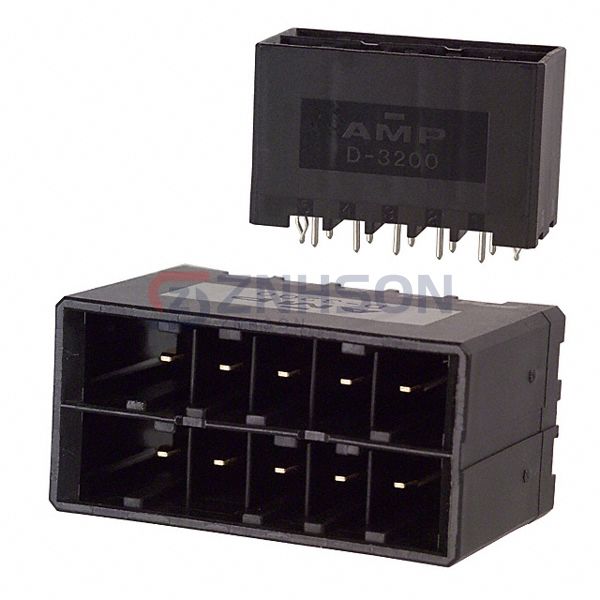

CONN HEADER VERT 10POS 5.08MM
$3.75
Available to order
Reference Price (USD)
4,900+
$2.53224
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 3-917657-3 rectangular connector header from TE Connectivity AMP Connectors. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 3-917657-3 is perfect for automotive, industrial, and consumer electronics. TE Connectivity AMP Connectors ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.200" (5.08mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.300" (7.62mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: -
- Insulation Height: 0.850" (21.59mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Polyester, Glass Filled
- Features: Board Lock
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 600V
