3010-14-003-13-00
CNC Tech
CNC Tech

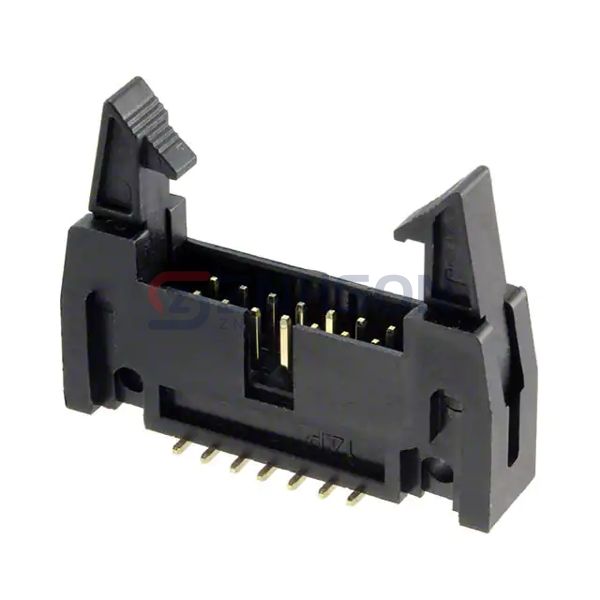

CONN HEADER SMD 14POS 2.54MM
$1.46
Available to order
Reference Price (USD)
1+
$0.96000
10+
$0.84200
100+
$0.72600
792+
$0.57750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 3010-14-003-13-00 rectangular connector header from CNC Tech for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. CNC Tech is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: -
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T; Polyamide (PA9T), Nylon 9T
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC/DC
