3010-26-001-12-00
CNC Tech
CNC Tech

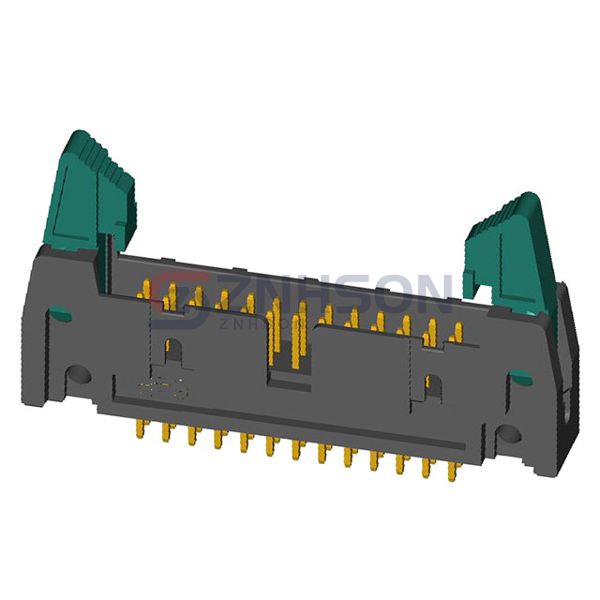

CONN HEADER VERT 26POS 2.54MM
$1.81
Available to order
Reference Price (USD)
1+
$1.62000
10+
$1.47000
432+
$1.14000
864+
$1.02000
1,296+
$0.90000
5,184+
$0.79800
10,368+
$0.78000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 3010-26-001-12-00 rectangular connector header from CNC Tech. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 3010-26-001-12-00 is perfect for automotive, industrial, and consumer electronics. CNC Tech ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Short
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: -
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC/DC
