3020-20-0300-00-TR
CNC Tech
CNC Tech
CONN HEADER SMD 20POS 2.54MM
$1.38
Available to order
Reference Price (USD)
1+
$1.38000
500+
$1.3662
1000+
$1.3524
1500+
$1.3386
2000+
$1.3248
2500+
$1.311
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 3020-20-0300-00-TR rectangular connector header from CNC Tech. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 3020-20-0300-00-TR meets the highest industry standards. CNC Tech provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.354" (9.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T; Polyamide (PA9T), Nylon 9T
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 3A (AC/DC)
- Voltage Rating: -
Related Products
Mill-Max Manufacturing Corp.
399-10-127-10-009000
Samtec Inc.
TSM-105-04-TM-DV-006
Amphenol ICC (FCI)
95293-401B04LF
Samtec Inc.
TSM-126-01-LM-DH-A
TE Connectivity AMP Connectors
4-644695-3
Mill-Max Manufacturing Corp.
435-10-208-00-160000
Samtec Inc.
FTSH-128-03-F-DV-A-P
Sullins Connector Solutions

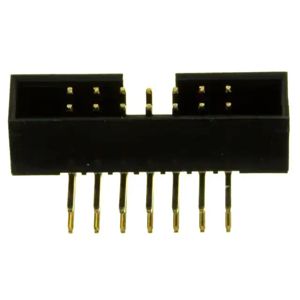

SBH21-NBPN-D07-RA-BK
Samtec Inc.

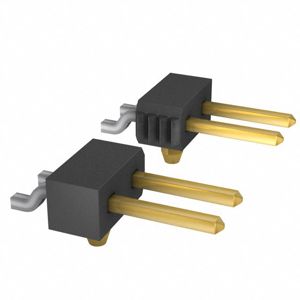

TSM-108-01-L-SH-A-K-TR
