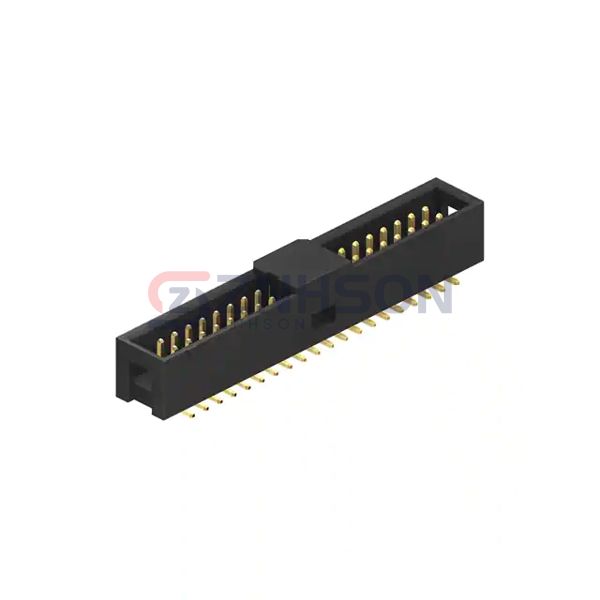

3020-40-0300-00-TR
CNC Tech
CNC Tech
CONN HEADER SMD 40POS 2.54MM
$2.67
Available to order
Reference Price (USD)
1+
$2.67000
500+
$2.6433
1000+
$2.6166
1500+
$2.5899
2000+
$2.5632
2500+
$2.5365
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3020-40-0300-00-TR by CNC Tech is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 3020-40-0300-00-TR supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. CNC Tech ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.354" (9.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T; Polyamide (PA9T), Nylon 9T
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 3A (AC/DC)
- Voltage Rating: -
