302114
Amphenol RF
Amphenol RF

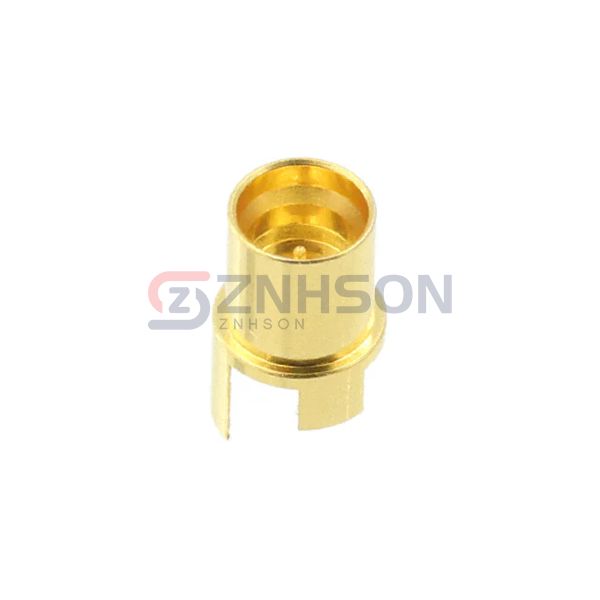

CONN SMP RCPT STR 50OHM EDGE MNT
$0.00
Available to order
Reference Price (USD)
1+
$9.68000
10+
$9.29800
25+
$8.52320
50+
$8.13580
100+
$7.94200
250+
$7.16724
500+
$6.77980
1,000+
$6.08244
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 302114 from Amphenol RF sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The 302114 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: SMP
- Connector Type: Receptacle, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Board Edge, End Launch
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 26.5 GHz
- Number of Ports: 1
- Features: Limited Detent
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
Related Products
TE Connectivity AMP Connectors
6274124-2
Amphenol RF
112615
TE Connectivity AMP Connectors
225395-6
TE Connectivity AMP Connectors
1-227079-6
Amphenol RF
172373
Pomona Electronics
4959
Amphenol RF
112958
TE Connectivity AMP Connectors
413959-6
Hirose Electric Co Ltd

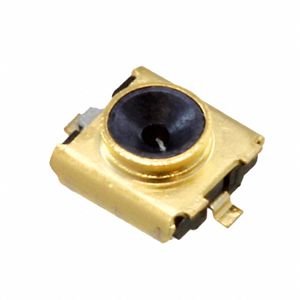

MS-166
