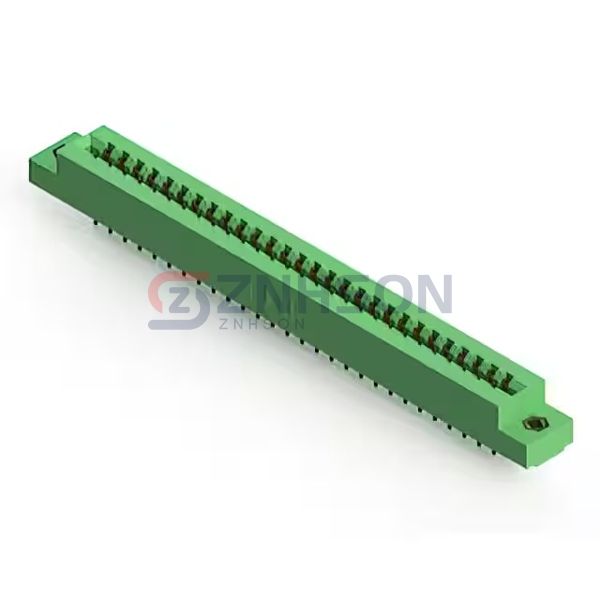

305-056-556-207
EDAC Inc.
EDAC Inc.
305 SERIES (.156" (3.96MM) CONTA
$16.57
Available to order
Reference Price (USD)
1+
$16.57280
500+
$16.407072
1000+
$16.241344
1500+
$16.075616
2000+
$15.909888
2500+
$15.74416
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 305-056-556-207 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 28
- Number of Positions: 56
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.156" (3.96mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Semi Bellows
- Color: Green
- Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature: -40°C ~ 105°C
