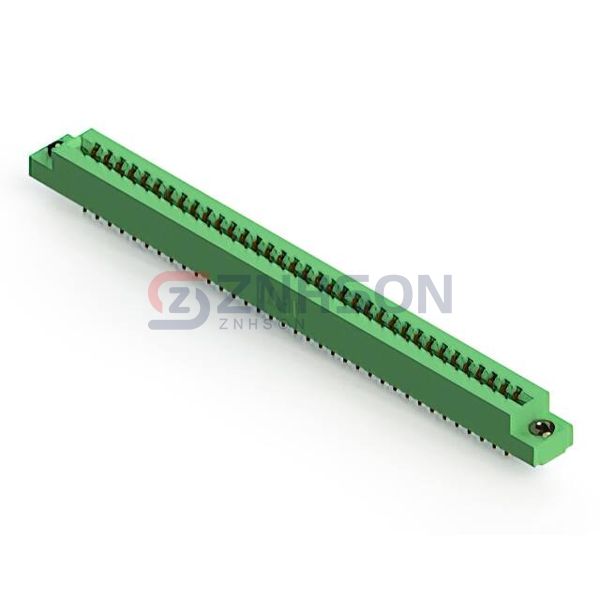

305-070-556-203
EDAC Inc.
EDAC Inc.
305 SERIES (.156" (3.96MM) CONTA
$16.75
Available to order
Reference Price (USD)
1+
$16.74680
500+
$16.579332
1000+
$16.411864
1500+
$16.244396
2000+
$16.076928
2500+
$15.90946
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 305-070-556-203 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 35
- Number of Positions: 70
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.156" (3.96mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Semi Bellows
- Color: Green
- Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature: -40°C ~ 105°C
