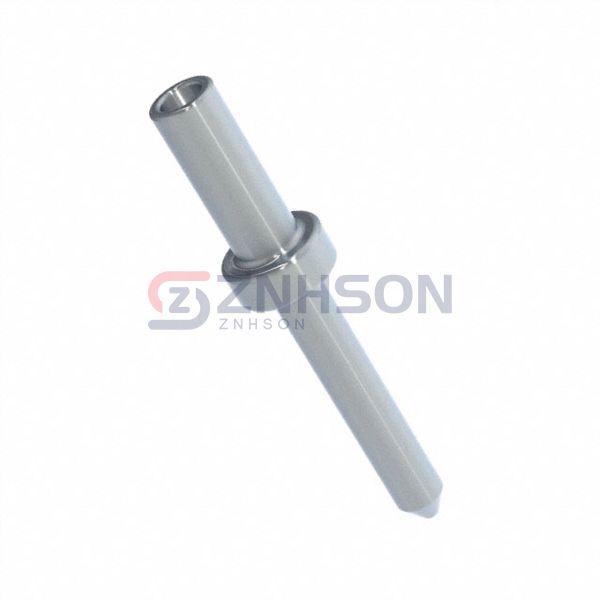

3114-2-00-01-00-00-08-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN PC PIN CIRC .025DIA TINLEAD
$0.40
Available to order
Reference Price (USD)
1,000+
$0.48000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3114-2-00-01-00-00-08-0 from Mill-Max Manufacturing Corp. is a durable and efficient terminal connector designed for PC pin and single post connections. Its robust construction ensures reliable performance in various applications, including telecommunications, aerospace, and renewable energy. The 3114-2-00-01-00-00-08-0 is a testament to Mill-Max Manufacturing Corp.'s commitment to quality and innovation. Whether for prototyping or mass production, this connector delivers consistent results. Trust Mill-Max Manufacturing Corp. for all your interconnect needs.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Single End
- Pin Size - Above Flange: 0.025" (0.64mm) Dia
- Pin Size - Below Flange: -
- Length - Above Flange: 0.150" (3.81mm)
- Length - Below Flange: 0.082" (2.08mm)
- Length - Overall: 0.252" (6.40mm)
- Flange Diameter: 0.050" (1.27mm)
- Mounting Hole Diameter: 0.035" (0.89mm)
- Mounting Type: Through Hole
- Termination: Swage
- Insulation: Non-Insulated
- Board Thickness: 0.062" (1.57mm)
- Contact Material: Brass Alloy
- Contact Finish: Tin-Lead
- Contact Finish Thickness: 200.0µin (5.08µm)
