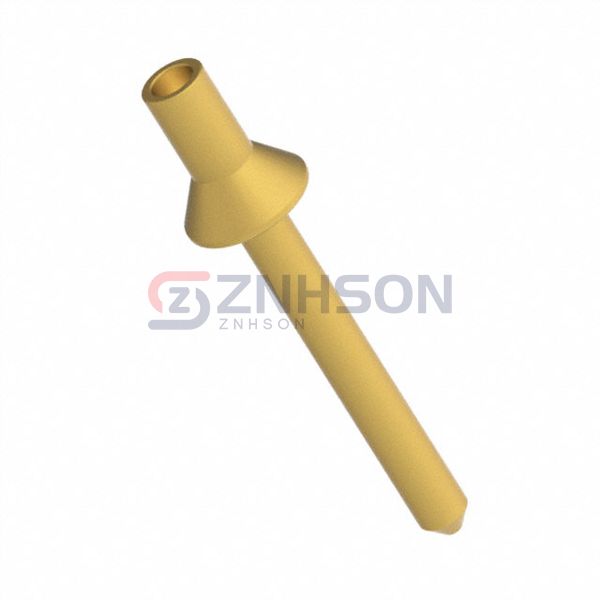

3117-1-00-34-00-00-08-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.024DIA GOLD
$0.54
Available to order
Reference Price (USD)
1,000+
$0.50672
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3117-1-00-34-00-00-08-0 terminal connector by Mill-Max Manufacturing Corp. is engineered for precision and durability in PC pin and single post applications. Its robust design ensures a secure fit and excellent electrical conductivity, making it suitable for high-performance environments. Whether you're working on consumer electronics, medical devices, or industrial machinery, the 3117-1-00-34-00-00-08-0 provides a reliable connection every time. Mill-Max Manufacturing Corp. is known for its innovative solutions, and the 3117-1-00-34-00-00-08-0 is no exception. Invest in quality with Mill-Max Manufacturing Corp. today.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Single End
- Pin Size - Above Flange: 0.024" (0.61mm) Dia
- Pin Size - Below Flange: -
- Length - Above Flange: 0.188" (4.78mm)
- Length - Below Flange: 0.047" (1.19mm)
- Length - Overall: 0.260" (6.60mm)
- Flange Diameter: 0.060" (1.52mm)
- Mounting Hole Diameter: 0.035" (0.89mm)
- Mounting Type: Through Hole
- Termination: Swage
- Insulation: Non-Insulated
- Board Thickness: 0.031" (0.79mm)
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 50.0µin (1.27µm)
Related Products
Mill-Max Manufacturing Corp.
9976-0-00-15-00-00-03-0
Harwin Inc.
H2082-01
Mill-Max Manufacturing Corp.
3137-4-00-21-00-00-08-0
Mill-Max Manufacturing Corp.
3137-1-00-21-00-00-08-0
Mill-Max Manufacturing Corp.
5344-0-00-15-00-00-03-0
Harwin Inc.
H2174-01
Mill-Max Manufacturing Corp.
4395-0-00-15-00-00-08-0
Mill-Max Manufacturing Corp.

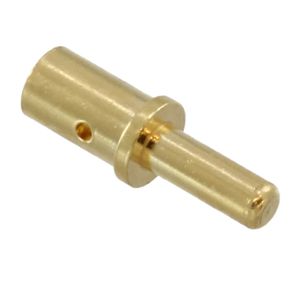

3912-0-01-15-00-00-08-0
Mill-Max Manufacturing Corp.

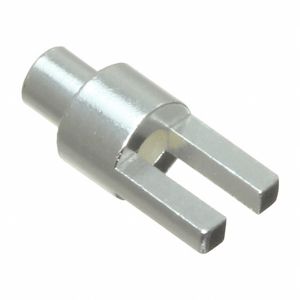

2807-2-01-44-00-00-07-0
