3121-1-00-15-00-00-08-0
Mill-Max Manufacturing Corp.

Mill-Max Manufacturing Corp.

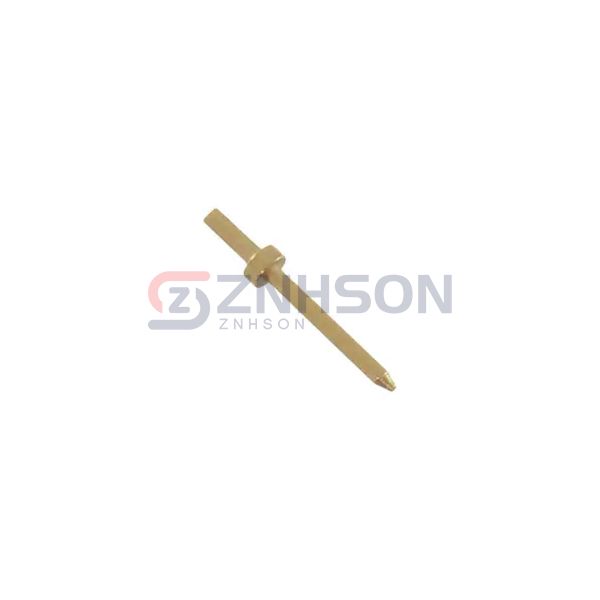

CONN PC PIN CIRC .017DIA GOLD
$0.73
Available to order
Reference Price (USD)
1+
$0.64000
10+
$0.60000
25+
$0.54000
50+
$0.48000
100+
$0.46000
250+
$0.42000
500+
$0.40000
1,000+
$0.33000
2,500+
$0.30000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 3121-1-00-15-00-00-08-0 by Mill-Max Manufacturing Corp. for superior terminal connectors in PC pin and single post applications. This connector is built to last, offering high conductivity and resistance to environmental factors. Commonly used in defense, automotive, and electronics manufacturing, the 3121-1-00-15-00-00-08-0 provides a dependable connection every time. Mill-Max Manufacturing Corp. is a leader in interconnect technology, and the 3121-1-00-15-00-00-08-0 showcases their expertise. Invest in Mill-Max Manufacturing Corp.'s 3121-1-00-15-00-00-08-0 for unmatched reliability and performance.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Single End
- Pin Size - Above Flange: 0.017" (0.43mm) Dia
- Pin Size - Below Flange: 0.019" (0.48mm) Dia
- Length - Above Flange: 0.157" (3.99mm)
- Length - Below Flange: 0.061" (1.55mm)
- Length - Overall: 0.234" (5.94mm)
- Flange Diameter: 0.040" (1.02mm)
- Mounting Hole Diameter: 0.023" (0.58mm)
- Mounting Type: Through Hole
- Termination: Solder
- Insulation: Non-Insulated
- Board Thickness: 0.025" (0.64mm)
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
