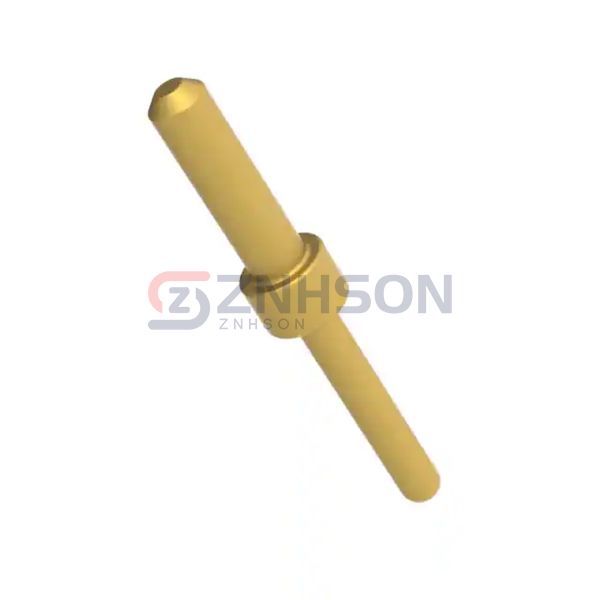

3137-3-00-15-00-00-08-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN PC PIN CIRC .030DIA GOLD
$0.80
Available to order
Reference Price (USD)
1+
$0.87000
10+
$0.76500
25+
$0.72000
50+
$0.69000
100+
$0.66000
250+
$0.60000
500+
$0.54000
1,000+
$0.48000
2,500+
$0.43500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electrical systems with the 3137-3-00-15-00-00-08-0 terminal connector from Mill-Max Manufacturing Corp.. Designed for PC pin and single post connections, this connector offers exceptional durability and performance. Suitable for automotive, industrial, and telecommunications applications, the 3137-3-00-15-00-00-08-0 ensures a reliable and long-lasting connection. Mill-Max Manufacturing Corp. is renowned for its high-quality interconnects, and the 3137-3-00-15-00-00-08-0 is a testament to their expertise. Trust Mill-Max Manufacturing Corp. for all your connectivity needs.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Double End
- Pin Size - Above Flange: 0.040" (1.02mm) Dia
- Pin Size - Below Flange: 0.030" (0.76mm) Dia
- Length - Above Flange: 0.145" (3.68mm)
- Length - Below Flange: 0.180" (4.57mm)
- Length - Overall: 0.365" (9.27mm)
- Flange Diameter: 0.062" (1.57mm)
- Mounting Hole Diameter: 0.043" (1.09mm)
- Mounting Type: Through Hole
- Termination: Solder
- Insulation: Non-Insulated
- Board Thickness: 0.125" (3.18mm)
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
