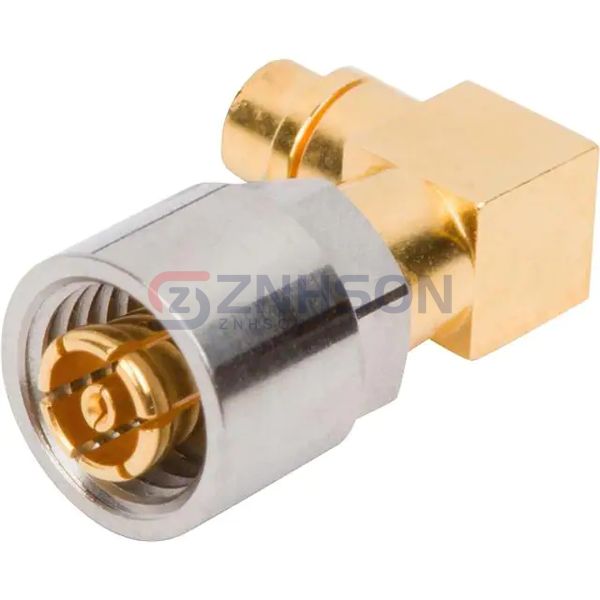

3222-40059
Amphenol SV Microwave
Amphenol SV Microwave
THREADED SMPM FEMALE CONNECTOR,
$75.80
Available to order
Reference Price (USD)
1+
$75.80000
500+
$75.042
1000+
$74.284
1500+
$73.526
2000+
$72.768
2500+
$72.01
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3222-40059 from Amphenol SV Microwave represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 3222-40059 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMPM
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line), Right Angle
- Mounting Feature: -
- Cable Group: RG-405 (.086 Semi Rigid)
- Fastening Type: Threaded
- Frequency - Max: 26.5 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
