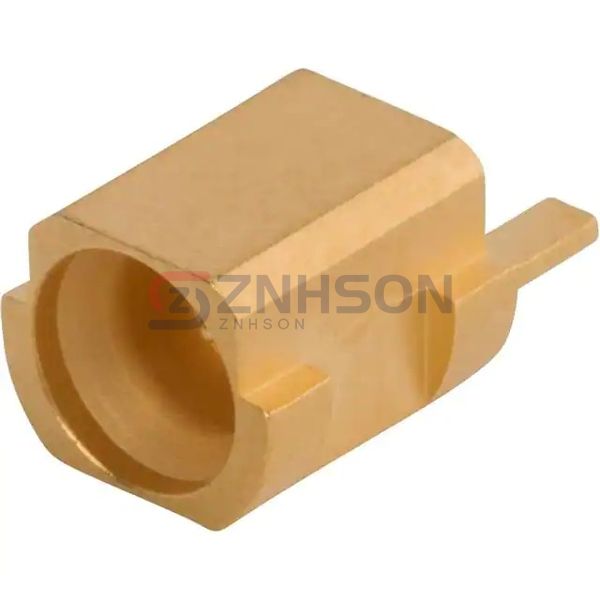

3285-6001
Amphenol SV Microwave
Amphenol SV Microwave
CONN SMPM PLUG STR 50OHM EDGEMNT
$29.14
Available to order
Reference Price (USD)
1+
$27.75000
10+
$25.05000
25+
$24.00000
50+
$22.50000
100+
$21.75000
250+
$20.55000
500+
$19.95000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 3285-6001 from Amphenol SV Microwave sets new standards in Coaxial Connectors (RF) performance. These connectors utilize ultra-precision machining to achieve consistent 50 or 75 impedance matching across all mating cycles. The product line includes SMA, N-type, TNC, and BNC variants with options for straight, right-angle, and bulkhead mounting. Specialized versions feature phase-matched designs for critical array applications. Key industries served include: Satellite communication ground stations Electronic warfare systems High-speed data acquisition systems Microwave radio links. The 3285-6001 series stands out with its hybrid design combining the durability of metal connectors with the weight savings of composite materials, ideal for airborne electronic systems.
Specifications
- Product Status: Active
- Connector Style: SMPM
- Connector Type: Plug, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Board Edge, Cutout; Surface Mount
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 40 GHz
- Number of Ports: 1
- Features: Full Detent
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
Related Products
TE Connectivity AMP Connectors
5227222-3
Cinch Connectivity Solutions Trompeter
UPL220-004
Radiall USA, Inc.
R125403000
TE Connectivity AMP Connectors
4-5227079-3
Huber+Suhner, Inc.
16_MCX-50-2-104/111_NH-1
Amphenol RF
132266
Amphenol RF

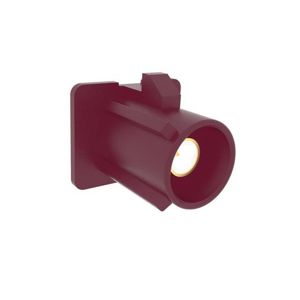

FA1-NDSP-PCB-2
RF Industries

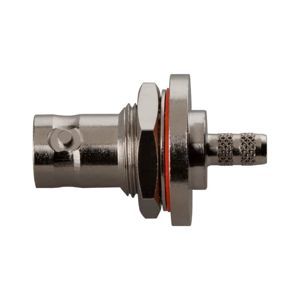

RFB-1117
