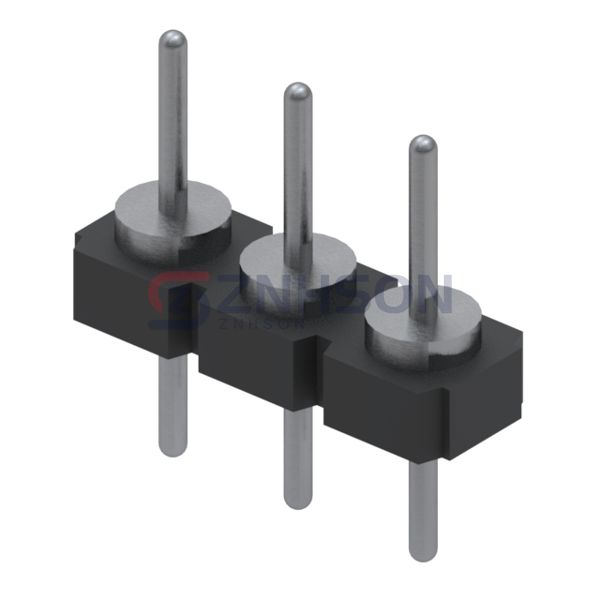

335-40-103-00-160000

Mill-Max Manufacturing Corp.

Manufacturer

Mill-Max Manufacturing Corp.

Description:

CONN HEADER VERT 3POS 2.54MM

Datasheet:

335-40-103-00-160000 Datasheet

$1.29

Available to order

Reference Price (USD)

$1.07000

10+

$0.94200

25+

$0.88680

50+

$0.84980

100+

$0.81280

250+

$0.73892

500+

$0.66502

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 335-40-103-00-160000 by Mill-Max Manufacturing Corp. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Mill-Max Manufacturing Corp. delivers connectors that meet the needs of modern electronics with unmatched reliability.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 3
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.125" (3.18mm)
Contact Length - Post: 0.104" (2.64mm)
Overall Contact Length: 0.299" (7.60mm)
Insulation Height: 0.050" (1.27mm)
Contact Shape: Circular
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 200.0µin (5.08µm)
Contact Finish - Post: Tin
Contact Material: Brass Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Features: -
Operating Temperature: -
Ingress Protection: -
Material Flammability Rating: -
Insulation Color: Black
Current Rating (Amps): -
Voltage Rating: 100V, 150VDC
