337-070-542-258
EDAC Inc.
EDAC Inc.
CONN EDGE DUAL FMALE 70POS 0.156
$17.33
Available to order
Reference Price (USD)
1+
$17.33360
500+
$17.160264
1000+
$16.986928
1500+
$16.813592
2000+
$16.640256
2500+
$16.46692
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 337-070-542-258 Card Edge Connectors - Edgeboard Connectors by EDAC Inc. are high-performance interconnect solutions designed for reliable signal transmission in demanding applications. These connectors feature a robust design with precision contacts, ensuring secure connections and long-term durability. Ideal for PCB-to-PCB connections, they support high-speed data transfer and are widely used in telecommunications, industrial automation, and consumer electronics. With their compact form factor and excellent electrical properties, the 337-070-542-258 series is a top choice for engineers seeking dependable edgeboard connectivity.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 35
- Number of Positions: 70
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.156" (3.96mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole
- Termination: Wire Wrap
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Green
- Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
345-036-540-658
EDAC Inc.
305-066-500-512
EDAC Inc.
357-046-522-201
EDAC Inc.
807-009-505-104
EDAC Inc.

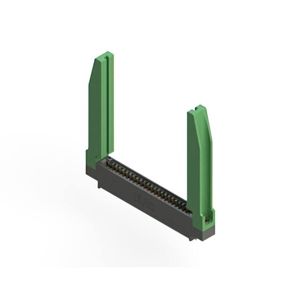

395-025-520-678
EDAC Inc.

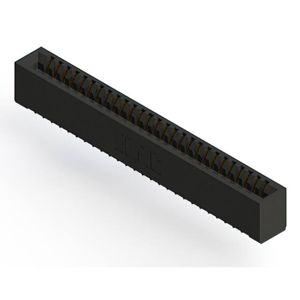

391-027-524-101
EDAC Inc.

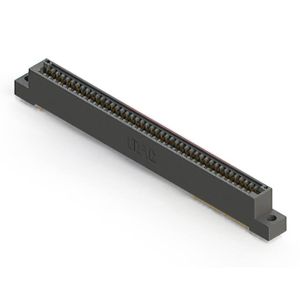

395-086-520-204
EDAC Inc.

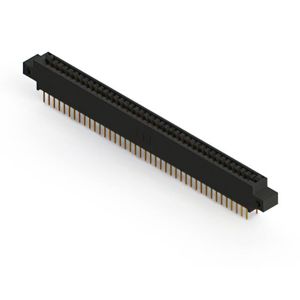

396-082-541-812
EDAC Inc.

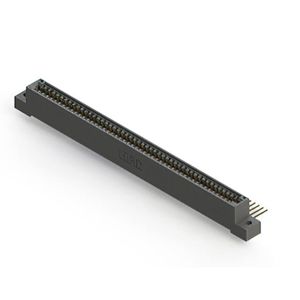

895-049-559-102
