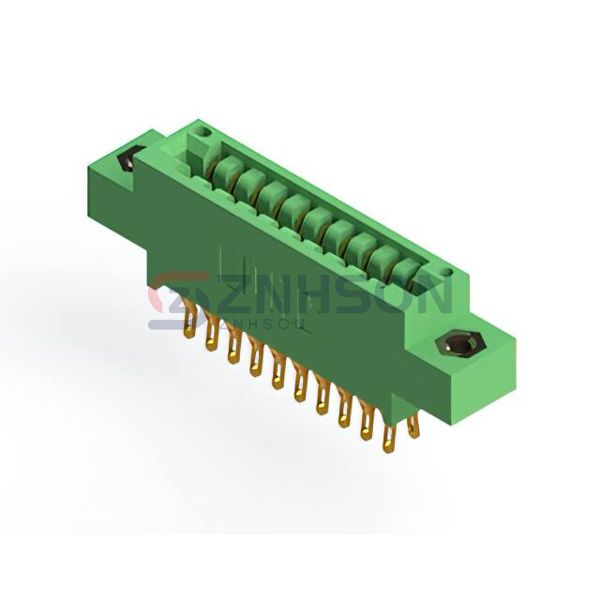

346-020-555-808
EDAC Inc.
EDAC Inc.
346 SERIES (.125" (3.18MM) CONTA
$11.91
Available to order
Reference Price (USD)
1+
$11.91160
500+
$11.792484
1000+
$11.673368
1500+
$11.554252
2000+
$11.435136
2500+
$11.31602
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 346-020-555-808 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 10
- Number of Positions: 20
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder Eyelet(s)
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Green
- Flange Feature: Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
346-029-526-612
EDAC Inc.
737-034-560-201
EDAC Inc.
807-012-405-112
EDAC Inc.
345-015-559-188
EDAC Inc.
395-018-525-802
EDAC Inc.
895-037-559-607
EDAC Inc.
307-010-445-178
EDAC Inc.
346-028-541-812
EDAC Inc.

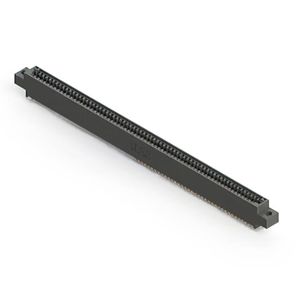

895-067-558-604
