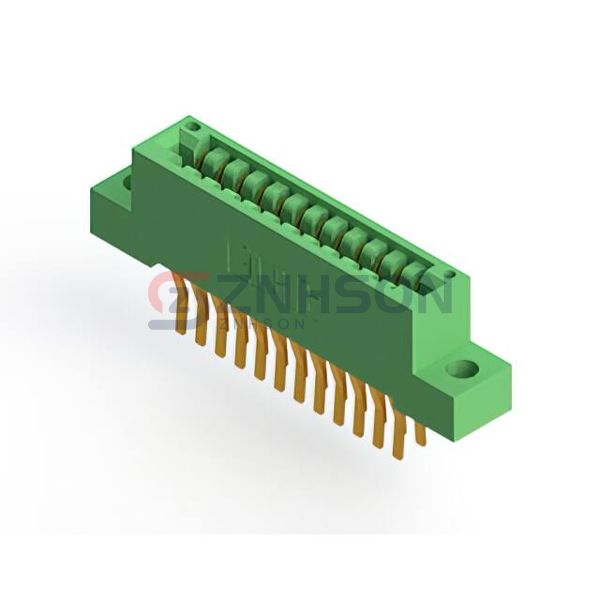

346-024-560-204
EDAC Inc.
EDAC Inc.
346 SERIES (.125" (3.18MM) CONTA
$9.83
Available to order
Reference Price (USD)
1+
$9.82800
500+
$9.72972
1000+
$9.63144
1500+
$9.53316
2000+
$9.43488
2500+
$9.3366
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 346-024-560-204 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 12
- Number of Positions: 24
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Green
- Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
892-055-542-107
EDAC Inc.
345-041-559-604
EDAC Inc.
845-120-544-503
EDAC Inc.
842-084-560-203
EDAC Inc.

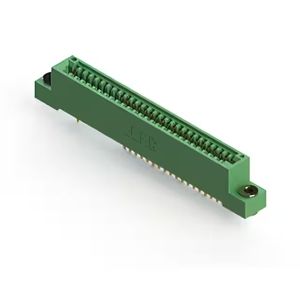

345-028-540-103
EDAC Inc.

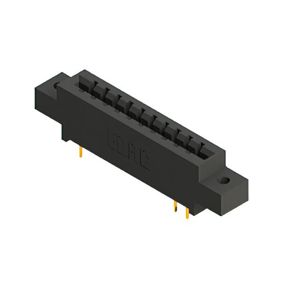

887-010-558-602
EDAC Inc.

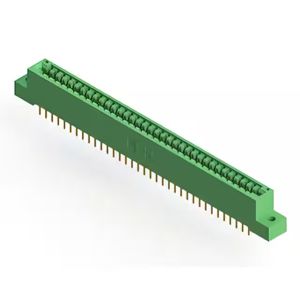

346-070-521-202
EDAC Inc.

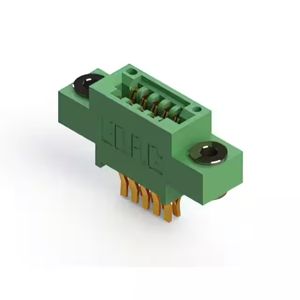

845-010-560-803
EDAC Inc.

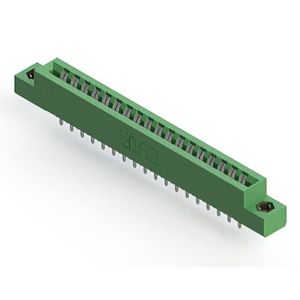

306-018-420-107
