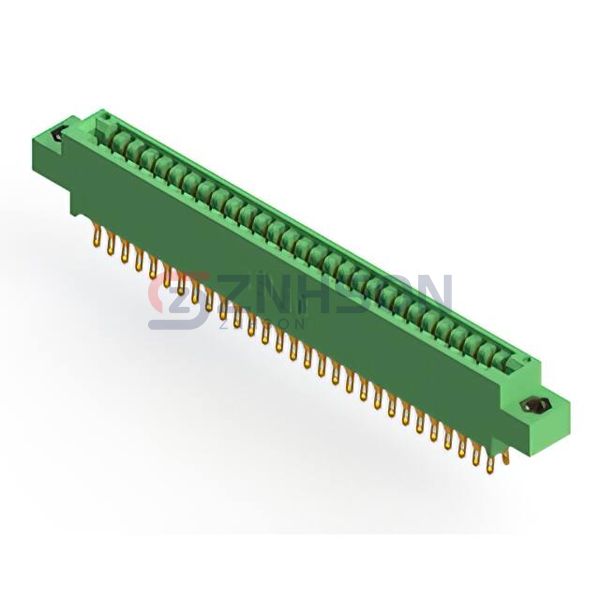

346-058-555-808
EDAC Inc.
EDAC Inc.
346 SERIES (.125" (3.18MM) CONTA
$13.92
Available to order
Reference Price (USD)
1+
$13.92040
500+
$13.781196
1000+
$13.641992
1500+
$13.502788
2000+
$13.363584
2500+
$13.22438
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 346-058-555-808 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 29
- Number of Positions: 58
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder Eyelet(s)
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Green
- Flange Feature: Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature: -40°C ~ 105°C
