350-10-154-00-006000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN HEADER VERT 54POS 2.54MM
$8.38
Available to order
Reference Price (USD)
1+
$7.62000
10+
$7.29800
25+
$6.66360
50+
$6.34640
100+
$6.02900
250+
$5.39440
500+
$5.07708
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

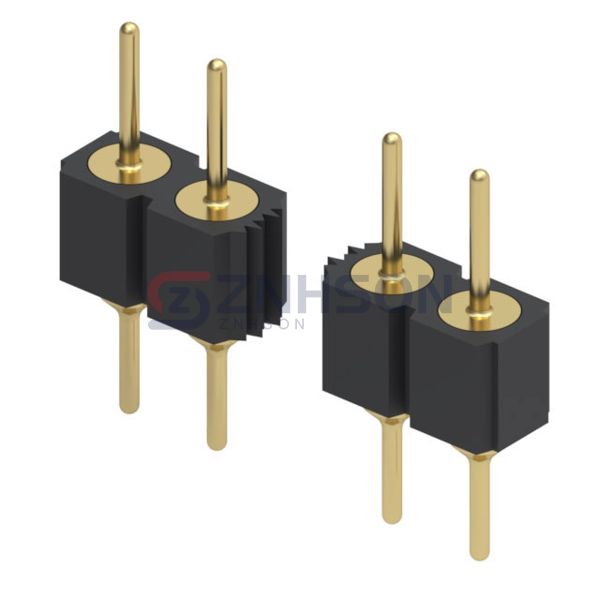

The 350-10-154-00-006000 by Mill-Max Manufacturing Corp. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 350-10-154-00-006000 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Mill-Max Manufacturing Corp. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 54
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.394" (10.00mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Brass Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
