350220-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

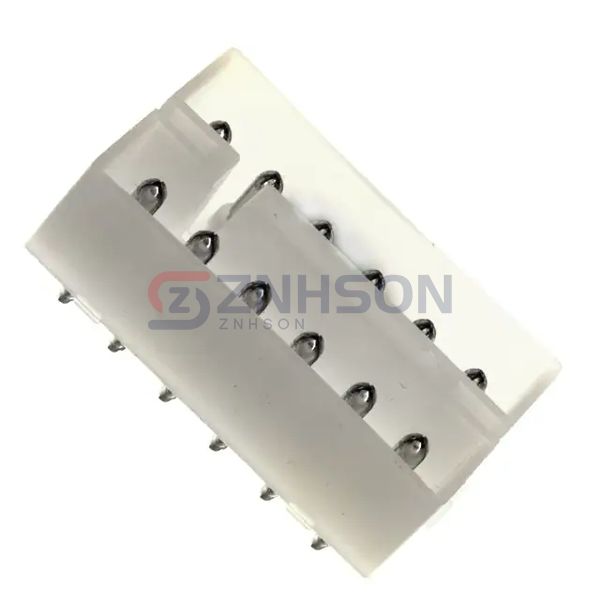

CONN HEADER VERT 12POS 5.08MM
$3.09
Available to order
Reference Price (USD)
1+
$2.01000
10+
$1.82800
100+
$1.56700
500+
$1.30584
1,000+
$1.11929
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 350220-1 rectangular connector header by TE Connectivity AMP Connectors. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 350220-1 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust TE Connectivity AMP Connectors for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.200" (5.08mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.360" (9.14mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.181" (4.60mm)
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: -
- Insulation Height: 0.375" (9.53mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): 12A
- Voltage Rating: 250VAC
