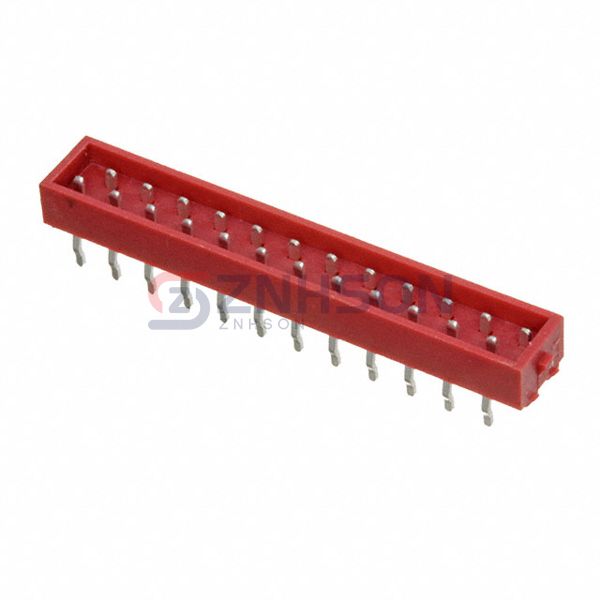

3522-24-0100-99
CNC Tech
CNC Tech
CONN HEADER VERT 24POS 2.54MM
$1.79
Available to order
Reference Price (USD)
1+
$1.57000
10+
$1.42100
100+
$1.21800
850+
$0.98600
1,700+
$0.84100
5,100+
$0.77140
10,200+
$0.75400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3522-24-0100-99 by CNC Tech is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 3522-24-0100-99 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. CNC Tech ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.146" (3.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 1A
- Voltage Rating: 500VAC
