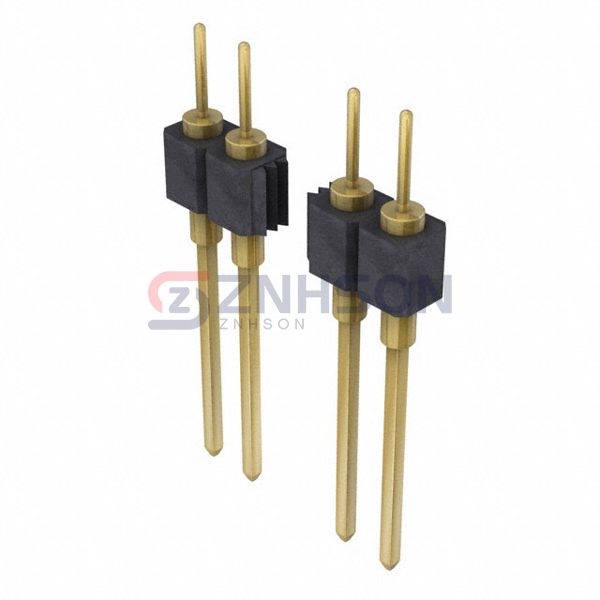

353-10-132-00-001101
Preci-Dip
Preci-Dip
CONN HEADER VERT 32POS 2.54MM
$8.63
Available to order
Reference Price (USD)
125+
$6.19856
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 353-10-132-00-001101 by Preci-Dip is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Preci-Dip delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 32
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Wire Wrap
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.147" (3.73mm)
- Contact Length - Post: 0.510" (12.95mm)
- Overall Contact Length: 0.880" (22.36mm)
- Insulation Height: 0.116" (2.95mm)
- Contact Shape: Circular, Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 150VDC
