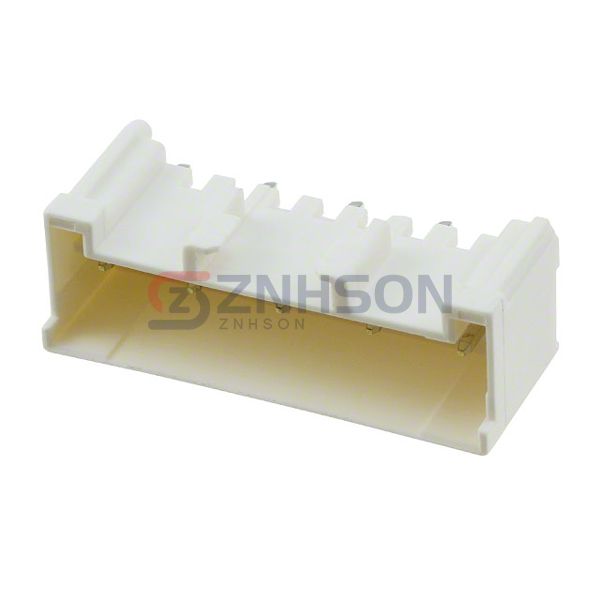

353352-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 13POS 2.5MM
$1.15
Available to order
Reference Price (USD)
1+
$1.02000
10+
$0.89900
100+
$0.78490
500+
$0.65412
1,000+
$0.58871
5,000+
$0.52330
10,000+
$0.50040
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 353352-1 rectangular connector header from TE Connectivity AMP Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 353352-1 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: 5
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.185" (4.70mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.410" (10.41mm)
- Insulation Height: 0.386" (9.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: Board Guide
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 50V
Related Products
3M
929836-01-31
Samtec Inc.
FTM-115-03-F-DV-TR
Preci-Dip
892-80-054-20-002101
Samtec Inc.
TSM-109-01-SM-SH-K-TR
Samtec Inc.
HTST-125-04-L-D-RA
Molex
0878320409
Preci-Dip
892-70-030-10-002101
Samtec Inc.
TLW-102-06-T-D

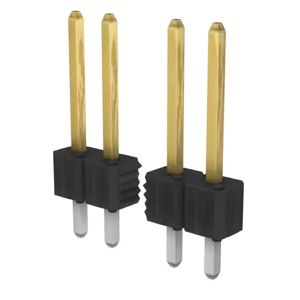

Amphenol ICC (FCI)
