3609-3-07-21-00-00-08-0
Mill-Max Manufacturing Corp.

Mill-Max Manufacturing Corp.

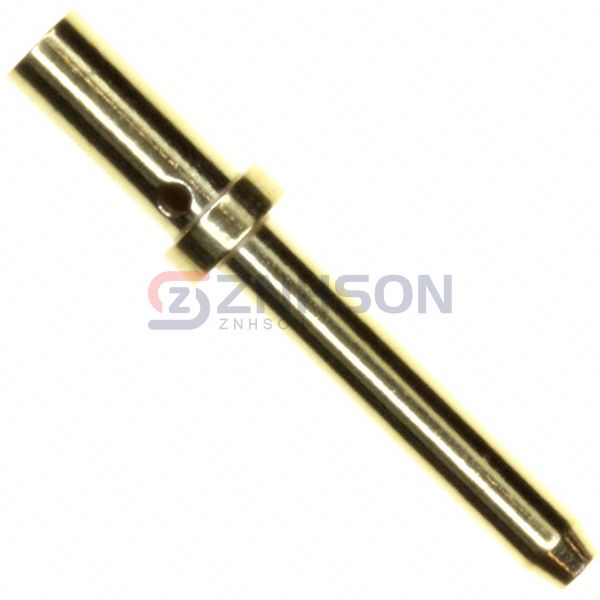

CONN PC PIN CIRC 0.080DIA GOLD
$1.42
Available to order
Reference Price (USD)
1+
$1.18000
10+
$1.04000
25+
$0.97920
50+
$0.93840
100+
$0.89760
250+
$0.81600
500+
$0.73440
1,000+
$0.65280
2,500+
$0.59160
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3609-3-07-21-00-00-08-0 by Mill-Max Manufacturing Corp. is a top-tier terminal connector perfect for PC pin and single post applications. Featuring high conductivity and corrosion resistance, this connector is a must-have for any electrical project. Commonly used in data centers, military equipment, and consumer electronics, the 3609-3-07-21-00-00-08-0 delivers consistent performance. Mill-Max Manufacturing Corp. is a leader in interconnect solutions, and the 3609-3-07-21-00-00-08-0 exemplifies their commitment to quality. Upgrade your connections with Mill-Max Manufacturing Corp.'s 3609-3-07-21-00-00-08-0 today.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Wire
- Pin Size - Above Flange: 0.080" (2.03mm) Dia
- Pin Size - Below Flange: 0.103" (2.62mm) Dia
- Length - Above Flange: 0.500" (12.70mm)
- Length - Below Flange: 0.250" (6.35mm)
- Length - Overall: 0.796" (20.22mm)
- Flange Diameter: 0.142" (3.61mm)
- Mounting Hole Diameter: -
- Mounting Type: Free Hanging (In-Line)
- Termination: Crimp
- Insulation: Non-Insulated
- Board Thickness: -
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 20.0µin (0.51µm)
