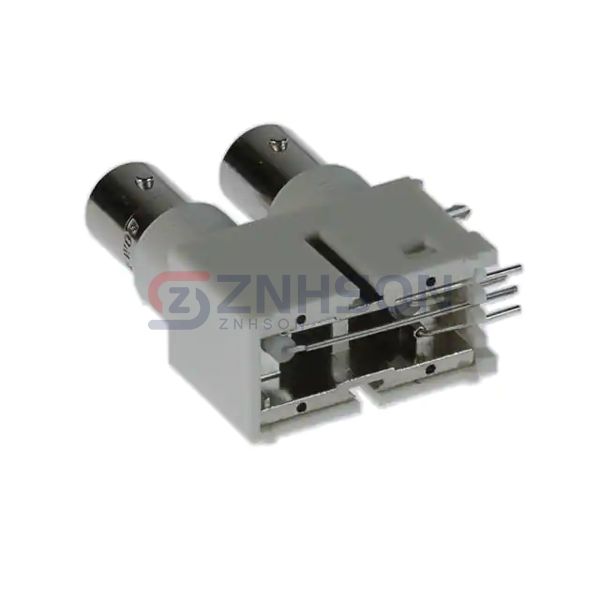

364A2795
Winchester Interconnect
Winchester Interconnect
CONN BNC JACK R/A 75 OHM PCB
$20.83
Available to order
Reference Price (USD)
1+
$10.74000
20+
$10.27400
100+
$8.63950
260+
$7.70550
500+
$7.23850
1,000+
$6.39790
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 364A2795 from Winchester Interconnect represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 364A2795 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: BNC
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 1 GHz
- Number of Ports: 2
- Features: Board Lock, Isolated
- Housing Color: Silver, White
- Ingress Protection: Weatherproof
- Center Contact Material: Phosphor Bronze
Related Products
Linx Technologies Inc.
CONREVSMA002-SMD-G
Amphenol SV Microwave
1621-60075
Amphenol SV Microwave
1211-40110
TE Connectivity AMP Connectors
2-329444-1
Amphenol RF
031-70013
Radiall USA, Inc.

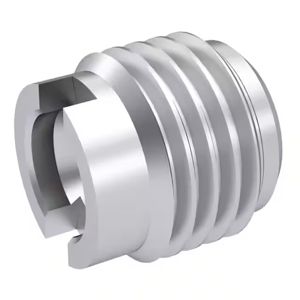

R222562021
Rosenberger

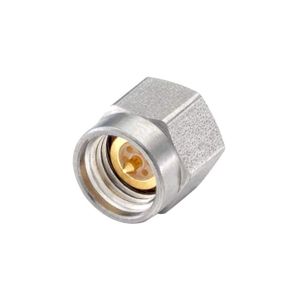

02S141-271E4
Amphenol RF

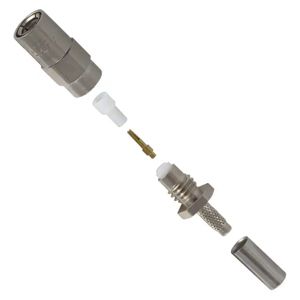

903-370P-51S
Amphenol RF

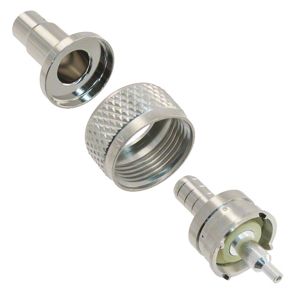

083-58DCP-2RFX
