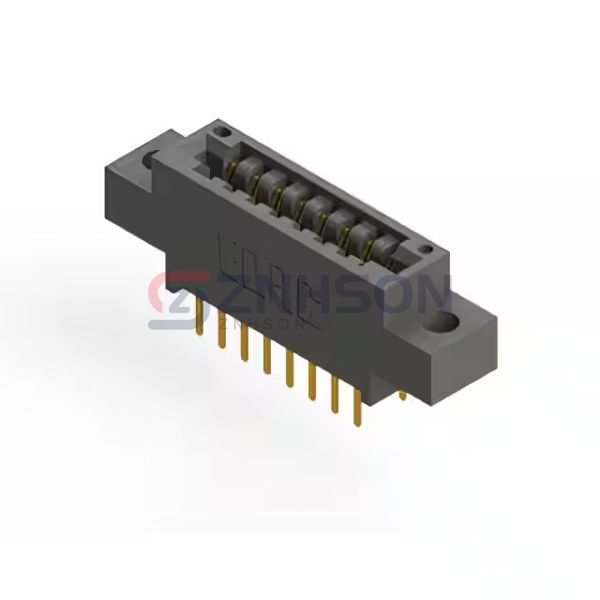

396-016-520-804
EDAC Inc.
EDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.125
$7.11
Available to order
Reference Price (USD)
1+
$7.10520
500+
$7.034148
1000+
$6.963096
1500+
$6.892044
2000+
$6.820992
2500+
$6.74994
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-016-520-804 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 8
- Number of Positions: 16
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature: -40°C ~ 105°C
