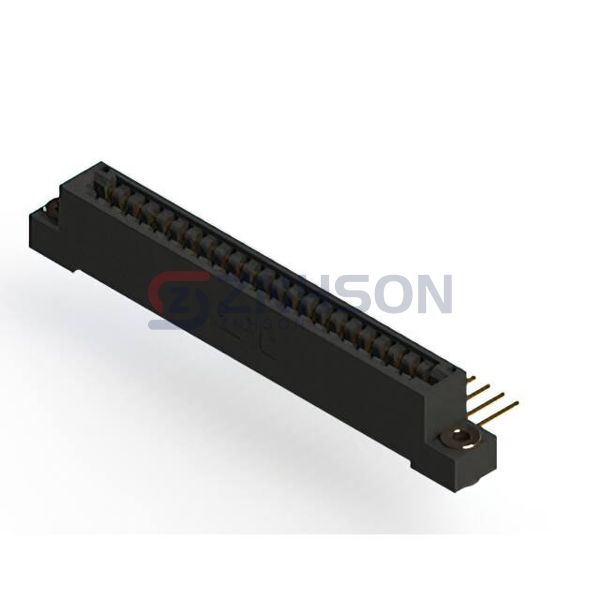

396-023-559-103
EDAC Inc.
EDAC Inc.
396 SERIES (.125" (3.18MM) CONTA
$13.82
Available to order
Reference Price (USD)
1+
$13.81600
500+
$13.67784
1000+
$13.53968
1500+
$13.40152
2000+
$13.26336
2500+
$13.1252
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-023-559-103 by EDAC Inc. sets the standard for Card Edge Connectors - Edgeboard Connectors with its innovative design and exceptional reliability. These connectors are optimized for high-density applications, offering a perfect balance between size and performance. Commonly used in server backplanes, data storage systems, and military communications, the 396-023-559-103 delivers unmatched connectivity solutions for critical operations.
Specifications
- Product Status: Active
- Card Type: Non Specified - Single Edge
- Gender: Female
- Number of Positions/Bay/Row: 23
- Number of Positions: 23
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 1
- Pitch: 0.125" (3.18mm)
- Read Out: Single
- Features: -
- Mounting Type: Through Hole, Right Angle
- Termination: Solder, Wire Wrap
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
896-020-559-807
EDAC Inc.
895-019-525-404
EDAC Inc.
333-034-555-807
EDAC Inc.
845-140-524-808
EDAC Inc.

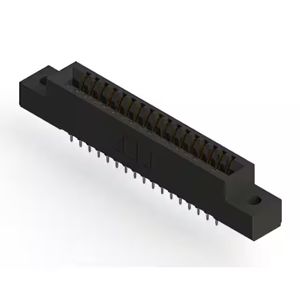

391-034-520-202
EDAC Inc.

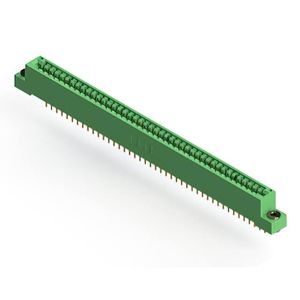

846-043-526-103
EDAC Inc.

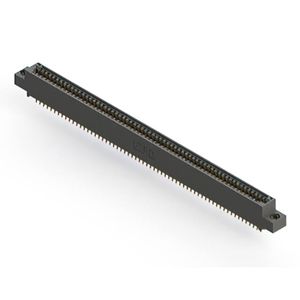

895-124-556-508
EDAC Inc.

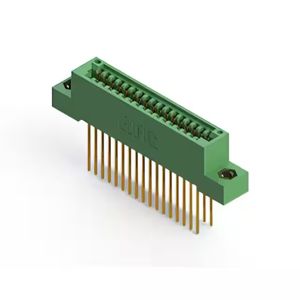

345-034-542-208
EDAC Inc.

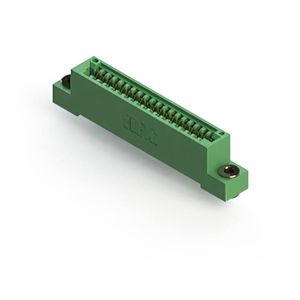

845-019-544-103
