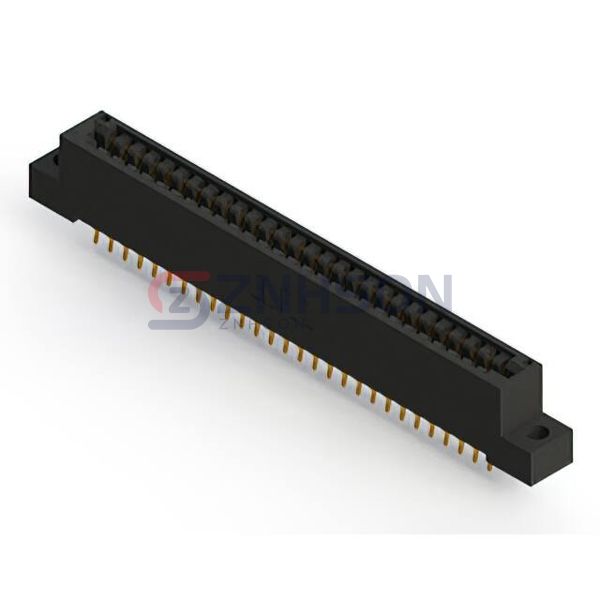

396-056-556-204
EDAC Inc.
EDAC Inc.
396 SERIES (.125" (3.18MM) CONTA
$12.33
Available to order
Reference Price (USD)
1+
$12.32840
500+
$12.205116
1000+
$12.081832
1500+
$11.958548
2000+
$11.835264
2500+
$11.71198
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-056-556-204 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 28
- Number of Positions: 56
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
333-017-520-608
EDAC Inc.
833-044-541-807
EDAC Inc.
357-038-454-178
EDAC Inc.

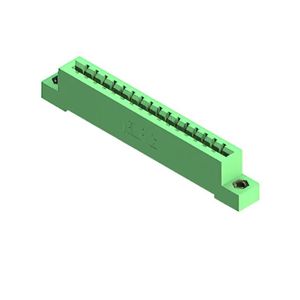

837-016-542-107
EDAC Inc.
346-018-540-858
EDAC Inc.

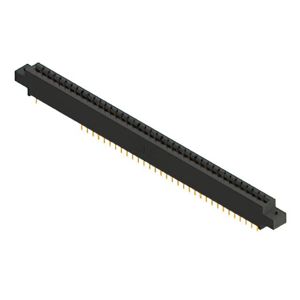

387-080-520-802
EDAC Inc.

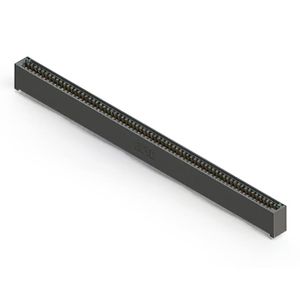

895-069-524-101
EDAC Inc.

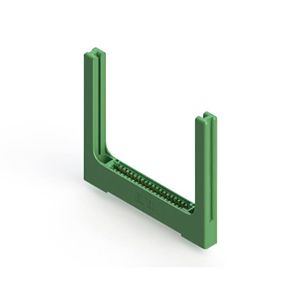

345-020-521-158
EDAC Inc.

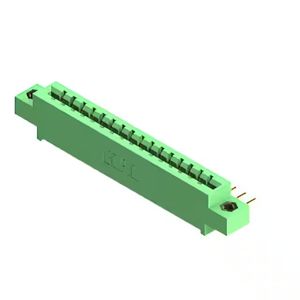

337-016-559-607
