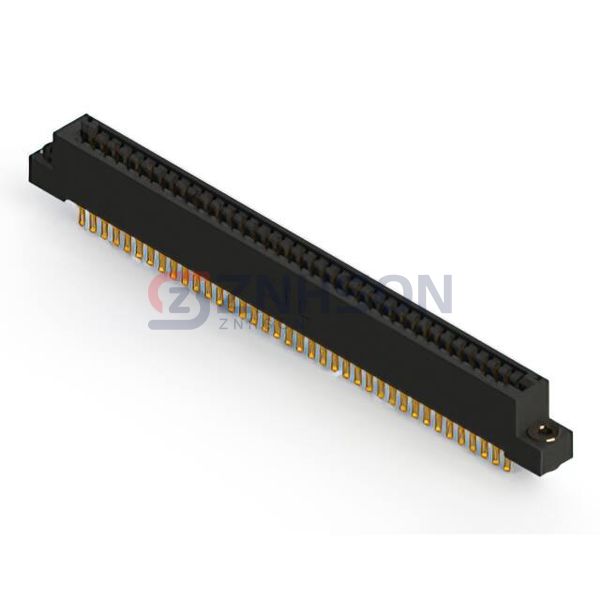

396-076-555-203
EDAC Inc.
EDAC Inc.
396 SERIES (.125" (3.18MM) CONTA
$15.45
Available to order
Reference Price (USD)
1+
$15.45360
500+
$15.299064
1000+
$15.144528
1500+
$14.989992
2000+
$14.835456
2500+
$14.68092
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-076-555-203 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 38
- Number of Positions: 76
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder Eyelet(s)
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
887-030-542-107
EDAC Inc.
845-094-555-208
EDAC Inc.
357-027-501-108
EDAC Inc.
307-011-427-107
EDAC Inc.
807-040-558-212
EDAC Inc.
895-070-558-604
EDAC Inc.
392-038-520-201
EDAC Inc.

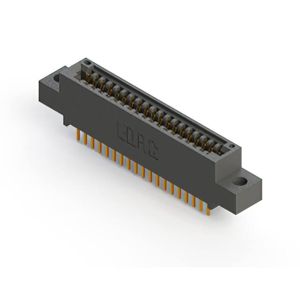

395-038-523-504
EDAC Inc.

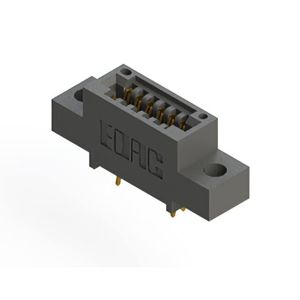

395-012-556-504
