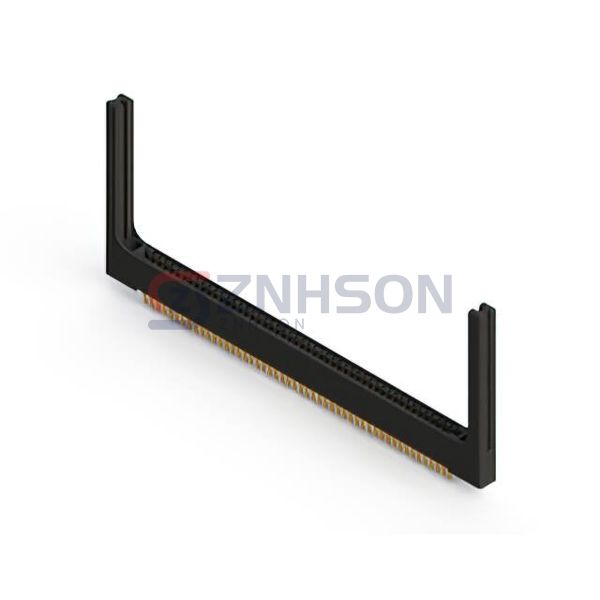

396-100-560-258
EDAC Inc.
EDAC Inc.
396 SERIES (.125" (3.18MM) CONTA
$18.16
Available to order
Reference Price (USD)
1+
$18.16000
500+
$17.9784
1000+
$17.7968
1500+
$17.6152
2000+
$17.4336
2500+
$17.252
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-100-560-258 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 50
- Number of Positions: 100
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: Card Extender, Card Guides
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
895-060-524-804
EDAC Inc.
345-014-524-502
EDAC Inc.
345-042-523-458
EDAC Inc.
395-068-544-878
EDAC Inc.
887-066-542-201
EDAC Inc.
857-030-553-112
EDAC Inc.

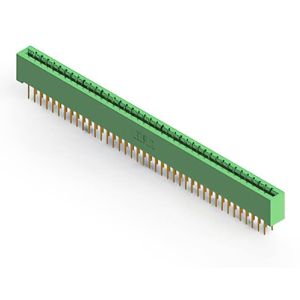

833-080-542-201
EDAC Inc.

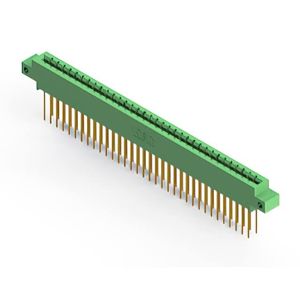

833-068-541-812
EDAC Inc.

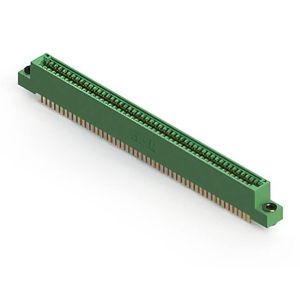

845-098-540-203
