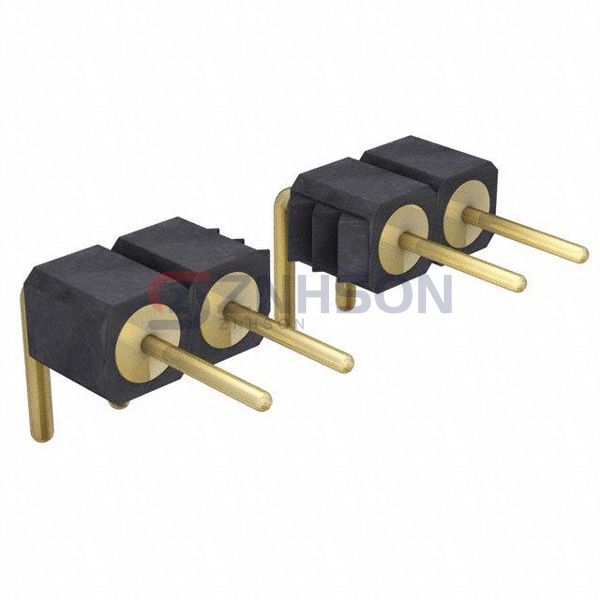

399-10-159-10-009101

Preci-Dip

Manufacturer

Preci-Dip

Description:

CONN HEADER R/A 59POS 2.54MM

Datasheet:

399-10-159-10-009101 Datasheet

$9.71

Available to order

Reference Price (USD)

70+

$7.16571

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the 399-10-159-10-009101 rectangular connector header from Preci-Dip, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 399-10-159-10-009101 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Preci-Dip guarantees connectors that enhance your product's reliability and efficiency.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 59
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.157" (4.00mm)
Contact Length - Post: 0.126" (3.20mm)
Overall Contact Length: -
Insulation Height: 0.100" (2.54mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: 150VDC
