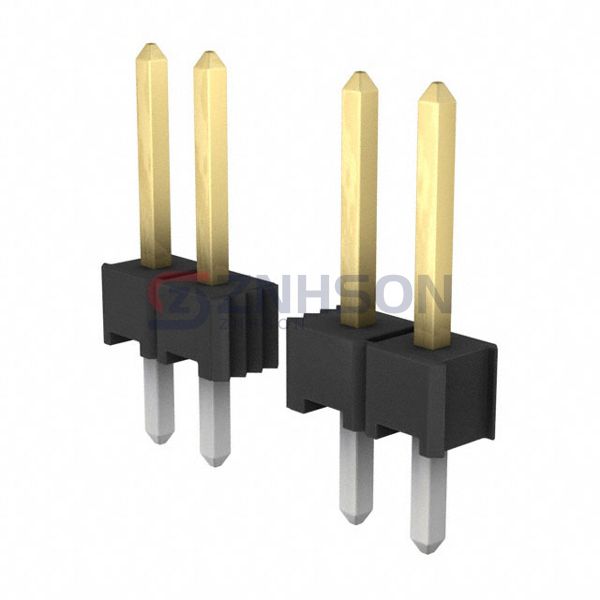

4-103185-0-18
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 18POS 2.54MM
$1.76
Available to order
Reference Price (USD)
1+
$1.62000
10+
$1.47300
25+
$1.38240
50+
$1.32220
100+
$1.26220
250+
$1.14196
500+
$1.05182
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 4-103185-0-18 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 4-103185-0-18 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.440" (11.18mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTSH-104-04-S-MT
Samtec Inc.
FTS-145-01-F-DV-P-TR
Preci-Dip
802-80-004-65-001101
Samtec Inc.
HTSW-202-14-G-S
Samtec Inc.
TMM-110-05-T-D-SM
TE Connectivity AMP Connectors
9-146277-0-37
TE Connectivity AMP Connectors
3-647502-4
Samtec Inc.

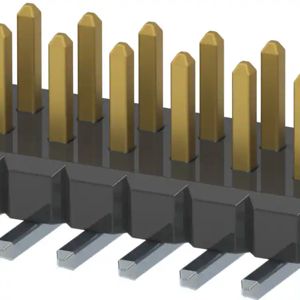

FTM-112-03-L-DV-P
Samtec Inc.

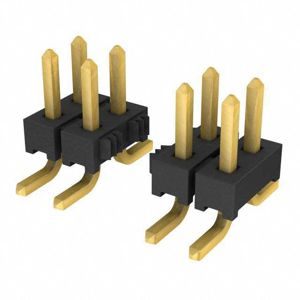

TMM-107-06-G-D-SM-P-TR
