4282-1-0200-06-SP
CNC Tech
CNC Tech
CONN HEADER R/A 6POS DUAL 94V-0
$0.57
Available to order
Reference Price (USD)
1+
$0.57000
500+
$0.5643
1000+
$0.5586
1500+
$0.5529
2000+
$0.5472
2500+
$0.5415
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

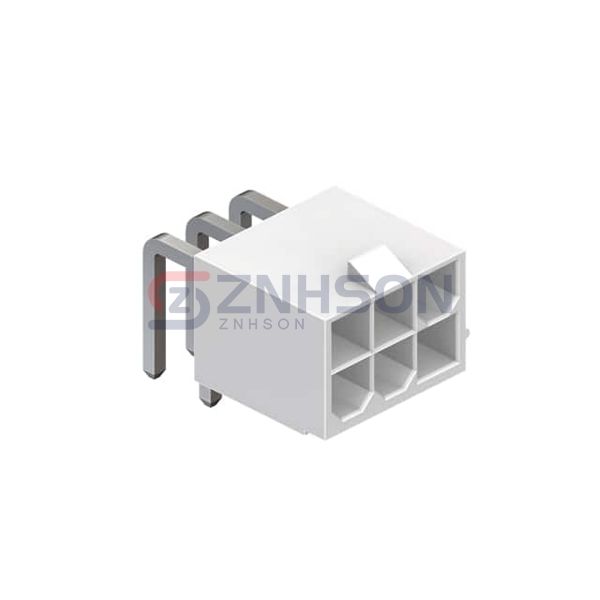

The 4282-1-0200-06-SP by CNC Tech is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 4282-1-0200-06-SP supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. CNC Tech ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.394" (10.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): 9A
- Voltage Rating: 600VAC/DC
