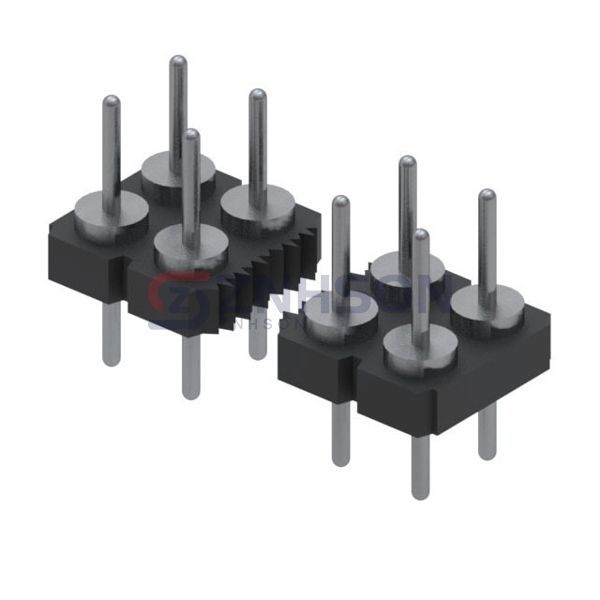

435-40-230-00-160000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN HEADER VERT 30POS 2.54MM
$6.55
Available to order
Reference Price (USD)
1+
$5.23000
10+
$5.02100
25+
$4.60240
50+
$4.39320
100+
$4.18400
250+
$3.66100
500+
$3.55640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 435-40-230-00-160000 rectangular connector header from Mill-Max Manufacturing Corp.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 435-40-230-00-160000 meets the highest industry standards. Mill-Max Manufacturing Corp. provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.125" (3.18mm)
- Contact Length - Post: 0.104" (2.64mm)
- Overall Contact Length: 0.299" (7.60mm)
- Insulation Height: 0.050" (1.27mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Brass Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
