474109
TE Connectivity Erni
TE Connectivity Erni
MIBR M 03POS RA A SMT KS
$3.79
Available to order
Reference Price (USD)
1+
$3.79000
500+
$3.7521
1000+
$3.7142
1500+
$3.6763
2000+
$3.6384
2500+
$3.6005
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

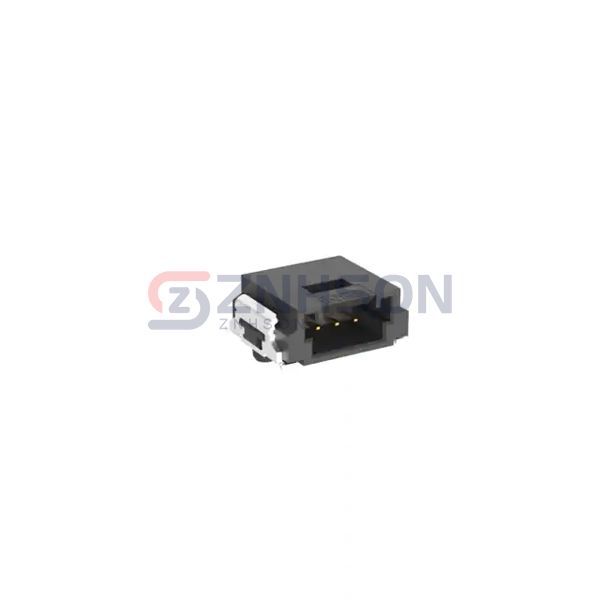

Optimize your interconnections with the 474109 rectangular connector header from TE Connectivity Erni. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 474109 is perfect for automotive, industrial, and consumer electronics. TE Connectivity Erni ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.087" (2.21mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.137" (3.47mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Solder Retention
- Operating Temperature: -55°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 5.4A per Contact
- Voltage Rating: -
