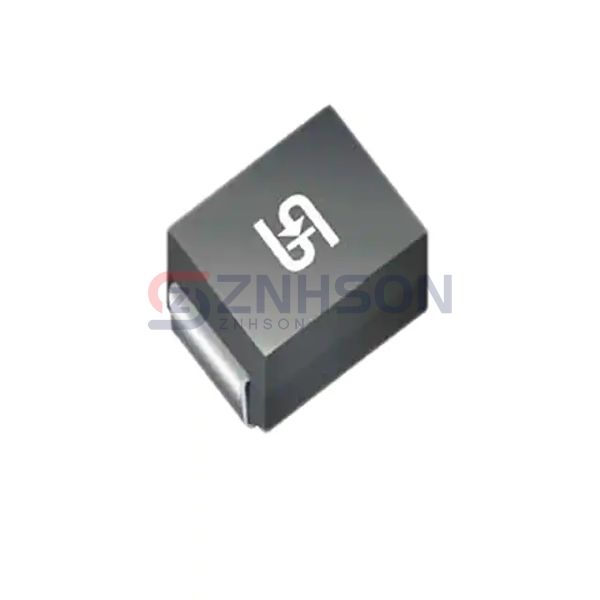

5.0SMDJ22AH
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
TVS DIODE 22VWM 35.5VC DO214AB
$2.88
Available to order
Reference Price (USD)
1+
$2.88000
500+
$2.8512
1000+
$2.8224
1500+
$2.7936
2000+
$2.7648
2500+
$2.736
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5.0SMDJ22AH TVS diode by Taiwan Semiconductor Corporation delivers exceptional protection for your electronic circuits. Featuring high surge current handling and low leakage, this diode is ideal for precision applications. TVS diodes are widely used in automotive, industrial, and telecommunications sectors. They are particularly effective in safeguarding sensitive components from voltage transients. For instance, the 5.0SMDJ22AH can protect GPS modules in vehicles from ESD events. Taiwan Semiconductor Corporation provides high-reliability TVS diodes that meet the stringent requirements of modern electronics.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 22V
- Voltage - Breakdown (Min): 24.4V
- Voltage - Clamping (Max) @ Ipp: 35.5V
- Current - Peak Pulse (10/1000µs): 141A
- Power - Peak Pulse: 5000W (5kW)
- Power Line Protection: No
- Applications: Telecom
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: DO-214AB (SMC)
