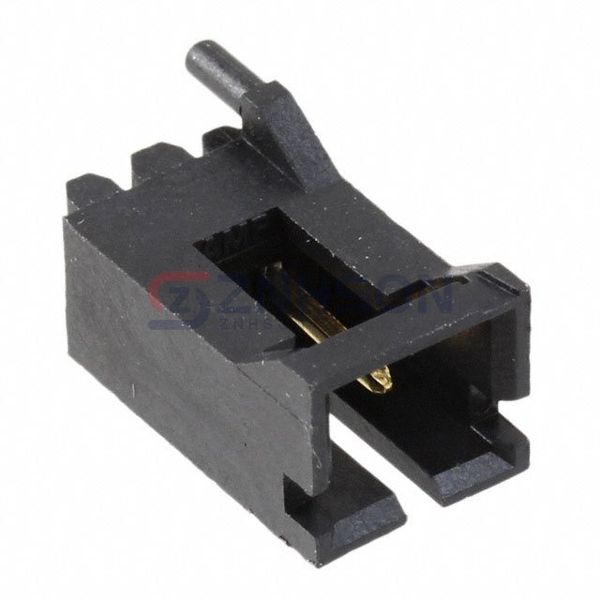

5-104809-1

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.100" (2.54mm)
• Number of Positions: 2
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Press-Fit, Solder
• Fastening Type: Latch Holder
• Contact Length - Mating: 0.230" (5.84mm)
• Contact Length - Post: 0.130" (3.30mm)
• Overall Contact Length: 0.545" (13.84mm)
• Insulation Height: 0.535" (13.60mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 15.0µin (0.38µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Thermoplastic
• Features: Board Guide, Keying Slot
• Operating Temperature: -65°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 3A
• Voltage Rating: -
