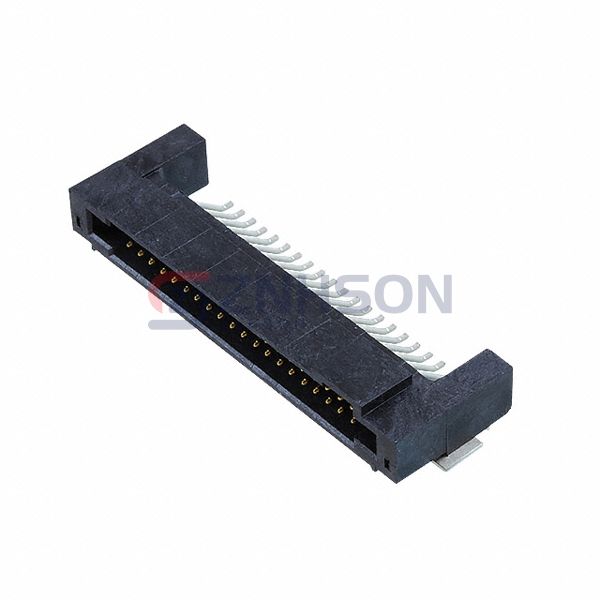

5-104894-4

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.050" (1.27mm)
• Number of Positions: 40
• Number of Rows: 2
• Row Spacing - Mating: 0.050" (1.27mm)
• Number of Positions Loaded: All
• Style: Board to Board
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Surface Mount, Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: -
• Contact Length - Post: -
• Overall Contact Length: -
• Insulation Height: 0.213" (5.40mm)
• Contact Shape: Circular
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 30.0µin (0.76µm)
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Liquid Crystal Polymer (LCP)
• Features: Board Lock, Solder Retention
• Operating Temperature: -65°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Black
• Current Rating (Amps): 0.5A per Contact
• Voltage Rating: -
