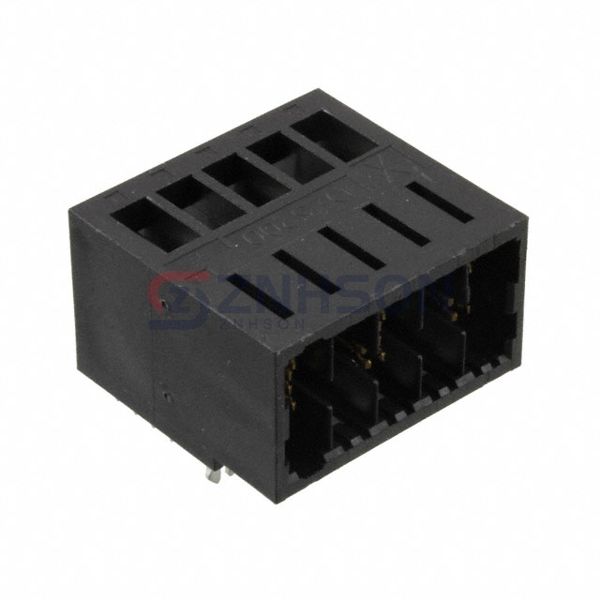

5-1747145-3

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN HEADER R/A 3POS 10.16MM

Datasheet:

5-1747145-3 Datasheet

$21.08

Available to order

Reference Price (USD)

$9.41000

15+

$9.03800

30+

$8.28433

60+

$7.90800

105+

$7.71971

255+

$6.96659

510+

$6.59000

1,005+

$5.91218

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 5-1747145-3 by TE Connectivity AMP Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity AMP Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Tab
Pitch - Mating: 0.400" (10.16mm)
Number of Positions: 3
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Detent Lock
Contact Length - Mating: -
Contact Length - Post: 0.150" (3.81mm)
Overall Contact Length: -
Insulation Height: 0.630" (16.00mm)
Contact Shape: Rectangular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Thermoplastic, Polyester, Glass Filled
Features: Board Guide, Board Lock
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 30A
Voltage Rating: 600V
