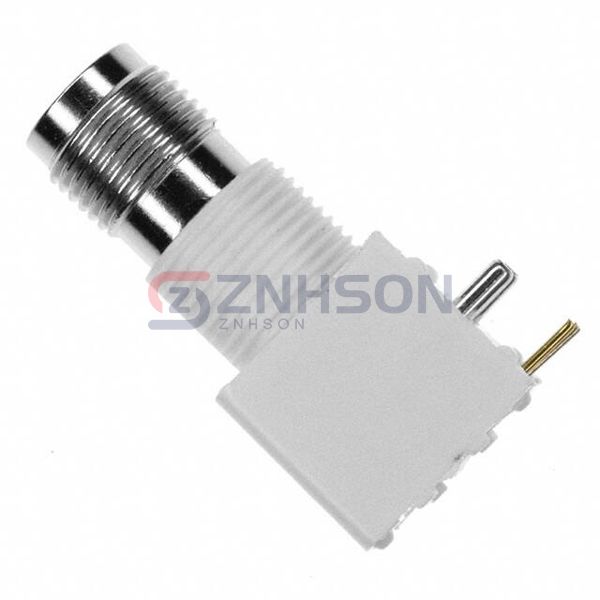

5-1814807-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN TNC JACK R/A 50 OHM PCB
$5.73
Available to order
Reference Price (USD)
1+
$4.90000
10+
$4.70700
25+
$4.31520
50+
$4.11900
100+
$3.92290
250+
$3.43252
500+
$3.33444
1,000+
$2.84409
2,500+
$2.64794
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TE Connectivity AMP Connectors's 5-1814807-1 series elevates Coaxial Connectors (RF) technology with groundbreaking features. These connectors employ hyperbolic contact profiles that ensure consistent electrical performance through extended mating cycles. The product range includes EMI-filtered versions for sensitive electronic environments and high-voltage variants for specialized applications. Notable characteristics: Frequency range from DC to 70GHz Multi-finger beryllium copper contacts Corrosion-resistant stainless steel bodies Customizable keying options. The 5-1814807-1 is extensively used in: Electronic intelligence systems Particle accelerator components Millimeter-wave imaging arrays Submarine communication systems. Its patented anti-microphonic design makes it particularly suitable for vibration-intensive aerospace applications.
Specifications
- Product Status: Obsolete
- Connector Style: TNC
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: Board Guide, Isolated
- Housing Color: Silver, White
- Ingress Protection: -
- Center Contact Material: Phosphor Bronze
Related Products
Radiall USA, Inc.
R161051000
Telegartner Inc
J01460A3005
Molex

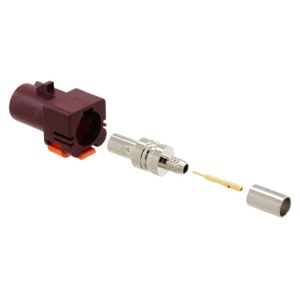

0734036283
Bulgin

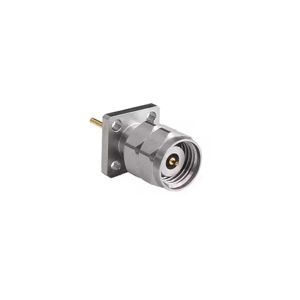

RFSMAA4JAAHR
Samtec Inc.

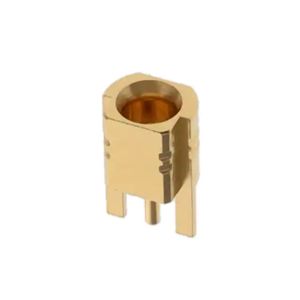

MMCXV-J-P-HF-ST-EM1
Amphenol RF

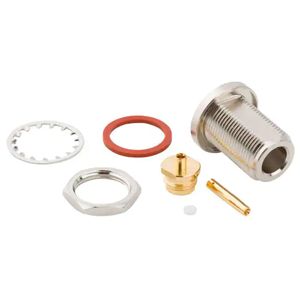

082-6096-RFX
Radiall USA, Inc.

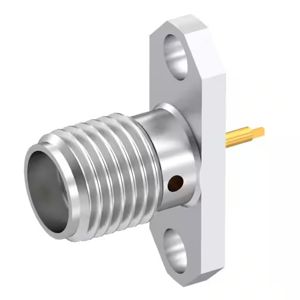

R125454001
Radiall USA, Inc.

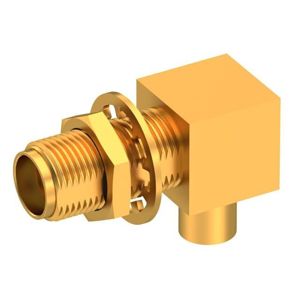

9613-1563-009
Amphenol RF

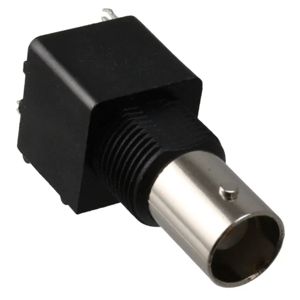

031-5539-1010
