5-87579-9
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

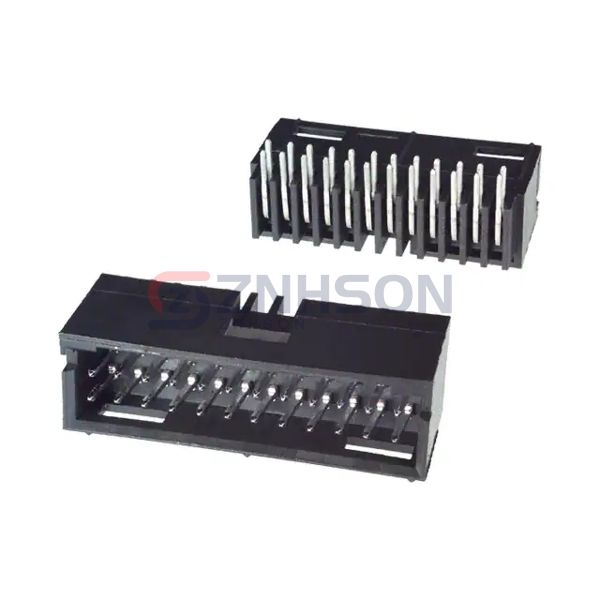

CONN HEADER R/A 24POS 2.54MM
$5.79
Available to order
Reference Price (USD)
1+
$4.47000
10+
$4.28900
144+
$3.57417
576+
$3.03807
1,008+
$2.59130
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5-87579-9 from TE Connectivity AMP Connectors is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 5-87579-9 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose TE Connectivity AMP Connectors for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.135" (3.43mm)
- Overall Contact Length: -
- Insulation Height: 0.400" (10.16mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
