5013310507
Molex
Molex
CONN HEADER SMD 5POS 1MM
$0.70
Available to order
Reference Price (USD)
1,100+
$0.27459
2,200+
$0.26627
3,300+
$0.24963
5,500+
$0.24131
11,000+
$0.22467
27,500+
$0.21635
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

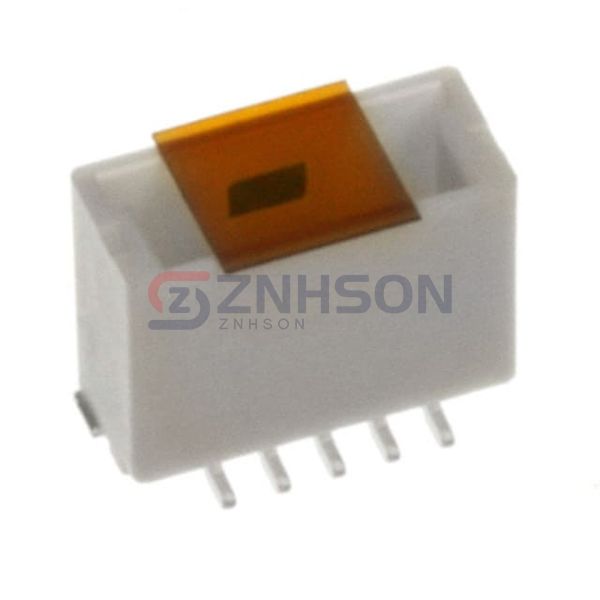

The 5013310507 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.213" (5.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 40.0µin (1.02µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA46), Nylon 4/6
- Features: Pick and Place, Solder Retention
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
77311-101-28LF
TE Connectivity AMP Connectors
4-103149-0
Samtec Inc.
MMT-103-01-L-DH
Samtec Inc.
TSW-105-07-G-S
Cvilux USA
CI2502P1H00-NH
Samtec Inc.
TFC-104-02-L-D
TE Connectivity AMP Connectors
6473423-2
Amphenol ICC (FCI)
87409-110LF
Samtec Inc.

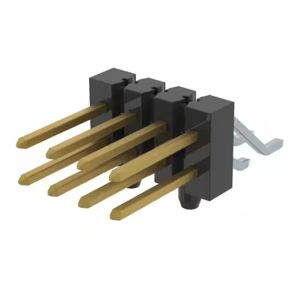

TSM-104-02-S-DH-A-P-TR
