5018761040
Molex
Molex
CONN HEADER R/A 10POS 2MM
$1.27
Available to order
Reference Price (USD)
1+
$0.82000
10+
$0.72300
100+
$0.62370
700+
$0.51026
1,400+
$0.45357
5,600+
$0.39687
10,500+
$0.37703
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

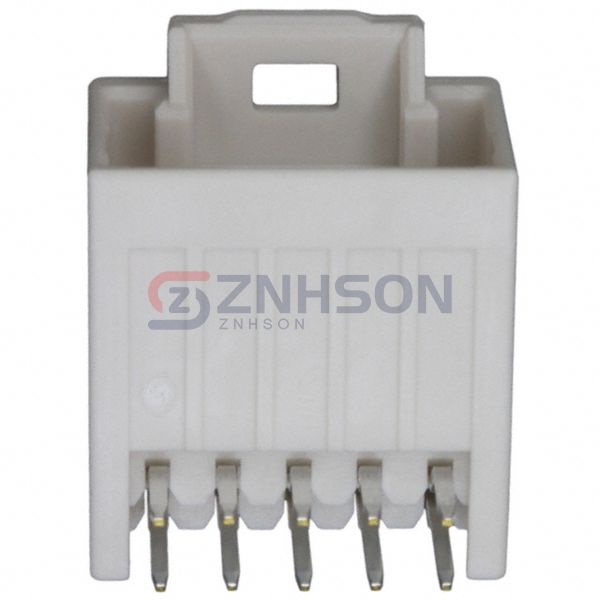

Enhance your electronic assemblies with the 5018761040 rectangular connector header from Molex. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 5018761040 meets the highest industry standards. Molex provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.327" (8.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
