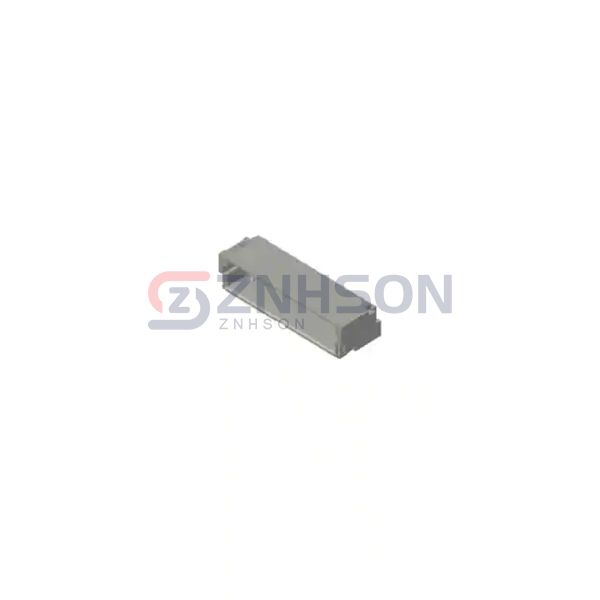

50224-00701-001
Aces Connectors
Aces Connectors
1.0 MM PITCH 7 POSITION WIRE TO
$0.22
Available to order
Reference Price (USD)
1+
$0.22000
500+
$0.2178
1000+
$0.2156
1500+
$0.2134
2000+
$0.2112
2500+
$0.209
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 50224-00701-001 rectangular connector header from Aces Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 50224-00701-001 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Aces Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.114" (2.90mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Halogen Free
- Features: Solder Retention
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 50VAC
Related Products
Molex

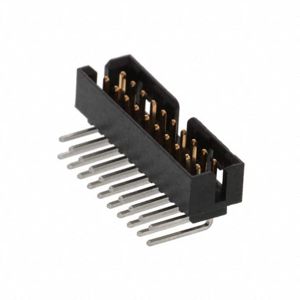

0878336520
Amphenol ICC (FCI)

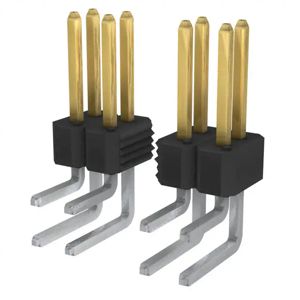

77317-112-52LF
Molex

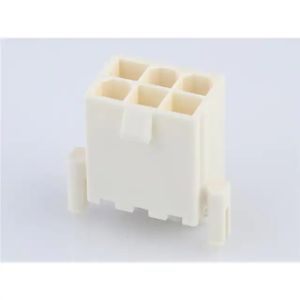

1724479704
Samtec Inc.

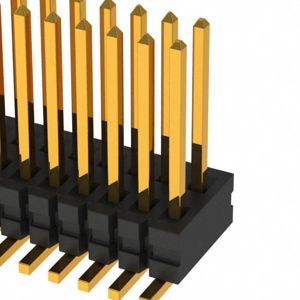

FTE-164-02-G-DV
Samtec Inc.

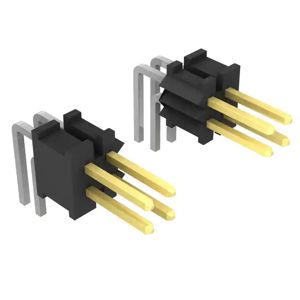

FTSH-107-01-LM-D-RA
Samtec Inc.

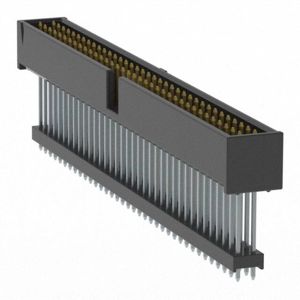

ZSS-136-04-L-D-815
Samtec Inc.

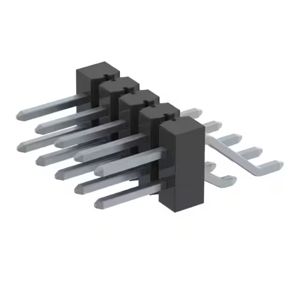

TSM-105-01-TM-DH
Würth Elektronik

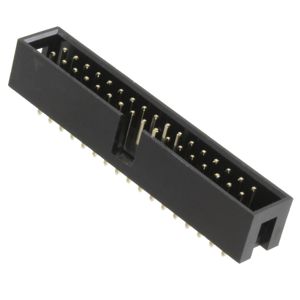

61203421621
