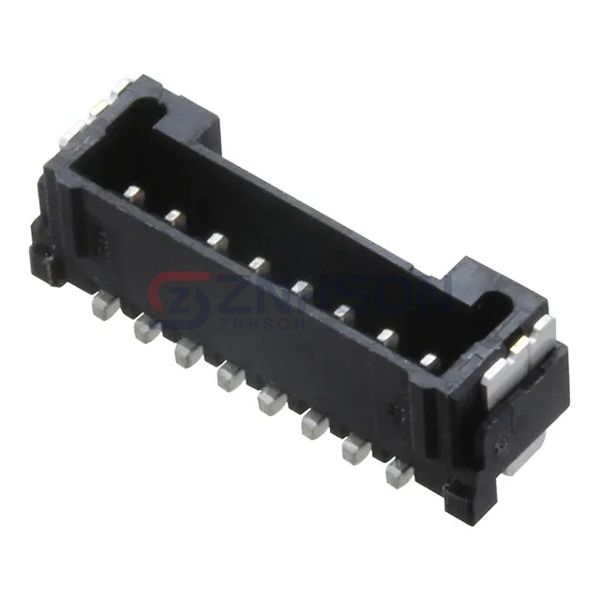

5055680871
Molex
Molex
CONN HEADER SMD 8POS 1.25MM
$1.10
Available to order
Reference Price (USD)
1,200+
$0.52192
2,400+
$0.47299
6,000+
$0.45668
8,400+
$0.43385
12,000+
$0.42406
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5055680871 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 5055680871 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.165" (4.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 50VAC/DC
Related Products
Samtec Inc.
BBD-101-G-A
Molex
0537800470
Samtec Inc.
FTSH-107-04-L-MT
Sullins Connector Solutions
PBC36SADN
Samtec Inc.
TSW-110-08-S-D
Samtec Inc.
FTSH-102-02-F-D
Samtec Inc.
TSM-102-01-F-DH-A
Amphenol ICC (FCI)

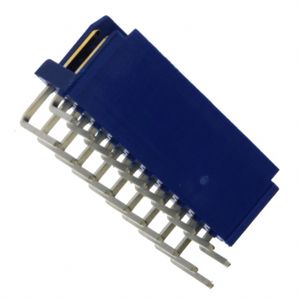

76383-310LF
TE Connectivity AMP Connectors

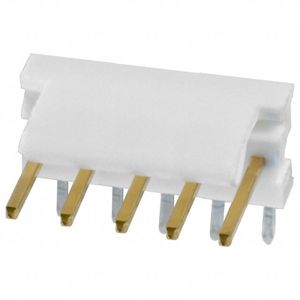

3-641216-5
