5111374-1

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN HEADER VERT 10POS 2.54MM

Datasheet:

5111374-1 Datasheet

$3.82

Available to order

Reference Price (USD)

$2.86000

54+

$2.43796

108+

$2.33204

540+

$2.01400

1,026+

$1.74900

5,022+

$1.59000

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

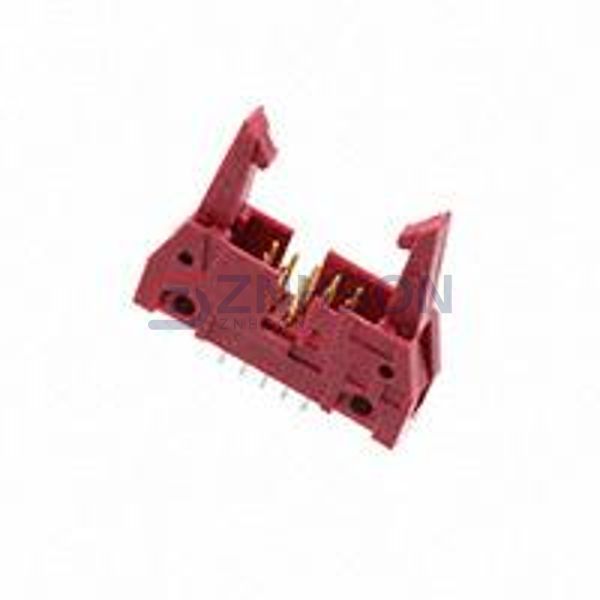

The 5111374-1 by TE Connectivity AMP Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity AMP Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 10
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks
Contact Length - Mating: 0.240" (6.10mm)
Contact Length - Post: 0.110" (2.79mm)
Overall Contact Length: 0.639" (16.23mm)
Insulation Height: 0.549" (13.94mm)
Contact Shape: Square
Contact Finish - Mating: Gold or Gold-Palladium
Contact Finish Thickness - Mating: Flash
Contact Finish - Post: Tin
Contact Material: -
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features: Keying Slot, Mounting Flange
Operating Temperature: -65°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Red
Current Rating (Amps): 1A per Contact
Voltage Rating: 250VAC
