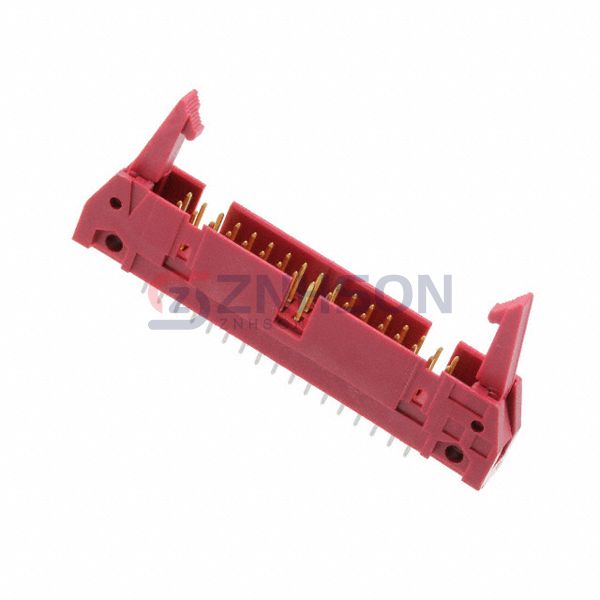

5111374-8

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN HEADER VERT 34POS 2.54MM

Datasheet:

5111374-8 Datasheet

$6.55

Available to order

Reference Price (USD)

690+

$5.21422

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 5111374-8 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 34
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks
Contact Length - Mating: 0.240" (6.10mm)
Contact Length - Post: 0.110" (2.79mm)
Overall Contact Length: 0.639" (16.23mm)
Insulation Height: 0.549" (13.94mm)
Contact Shape: Square
Contact Finish - Mating: Gold or Gold-Palladium
Contact Finish Thickness - Mating: Flash
Contact Finish - Post: Tin
Contact Material: -
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features: Keying Slot, Mounting Flange
Operating Temperature: -65°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Red
Current Rating (Amps): 1A per Contact
Voltage Rating: 250VAC
