5197.11.1520.003
IMS Connector Systems
IMS Connector Systems

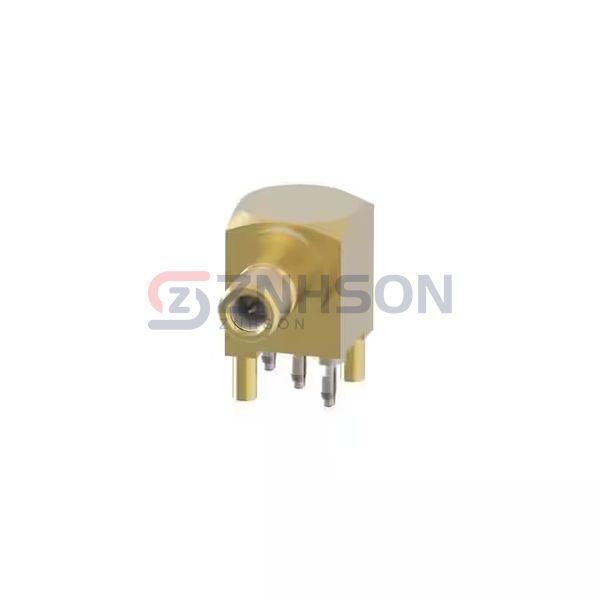

SMB - PCB MOUNT ANGLE PLUG
$11.04
Available to order
Reference Price (USD)
1+
$11.04000
500+
$10.9296
1000+
$10.8192
1500+
$10.7088
2000+
$10.5984
2500+
$10.488
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
IMS Connector Systems's 5197.11.1520.003 RF coaxial connectors deliver unmatched reliability in our Coaxial Connectors (RF) category. These components feature patented dielectric interface technology that maintains signal integrity up to millimeter-wave frequencies. The product range includes both standard and reverse-polarity configurations with various gender options. Constructed with military-grade materials, they exceed MIL-STD-348 compliance requirements. Application highlights: 5G massive MIMO antennas Electronic test and calibration standards Marine navigation radars Medical linear accelerators. The 5197.11.1520.003 series incorporates unique visual mating indicators and color-coding options for error-proof installations in complex RF subsystems.
Specifications
- Product Status: Active
- Connector Style: SMB
- Connector Type: Plug, Male Pin
- Contact Termination: Solder Eyelet
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Through Hole, Right Angle
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 6 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
