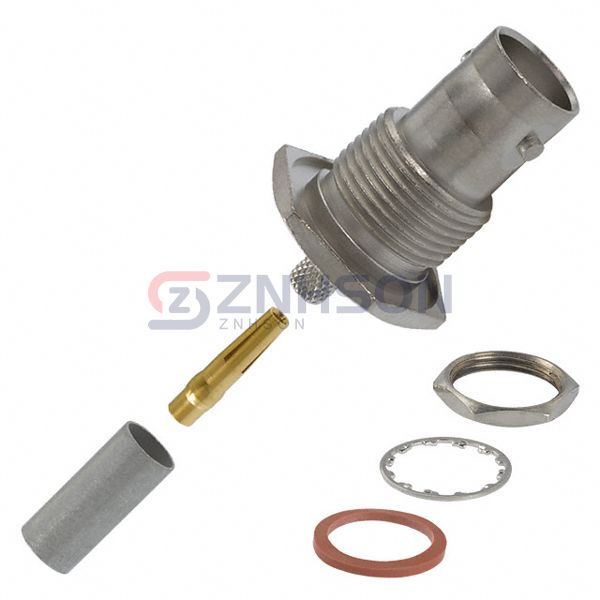

5225398-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN BNC JACK STR 50 OHM CRIMP
$20.61
Available to order
Reference Price (USD)
1+
$20.03000
10+
$18.59600
25+
$16.68920
50+
$16.21220
100+
$14.30490
250+
$13.35124
500+
$13.06514
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5225398-3 from TE Connectivity AMP Connectors represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 5225398-3 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Obsolete
- Connector Style: BNC
- Connector Type: Jack, Female Socket
- Contact Termination: Crimp
- Shield Termination: Crimp
- Impedance: 50Ohm
- Mounting Type: Panel Mount
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: RG-55, 55A, 55B, 223
- Fastening Type: Bayonet Lock
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
